SAMXOMAP Main Wiring Harness for EZGO TXT48 48V Golf Carts | 2010-2022

Overview

The SAMXOMAP main wiring harness is designed for EZGO TXT48 based 48V golf carts from 2010 through 2022. It aims to keep power and control signals neatly organized along the vehicle’s backbone, simplifying the connection between major components and reducing the guesswork during installation.

What it includes and where it fits

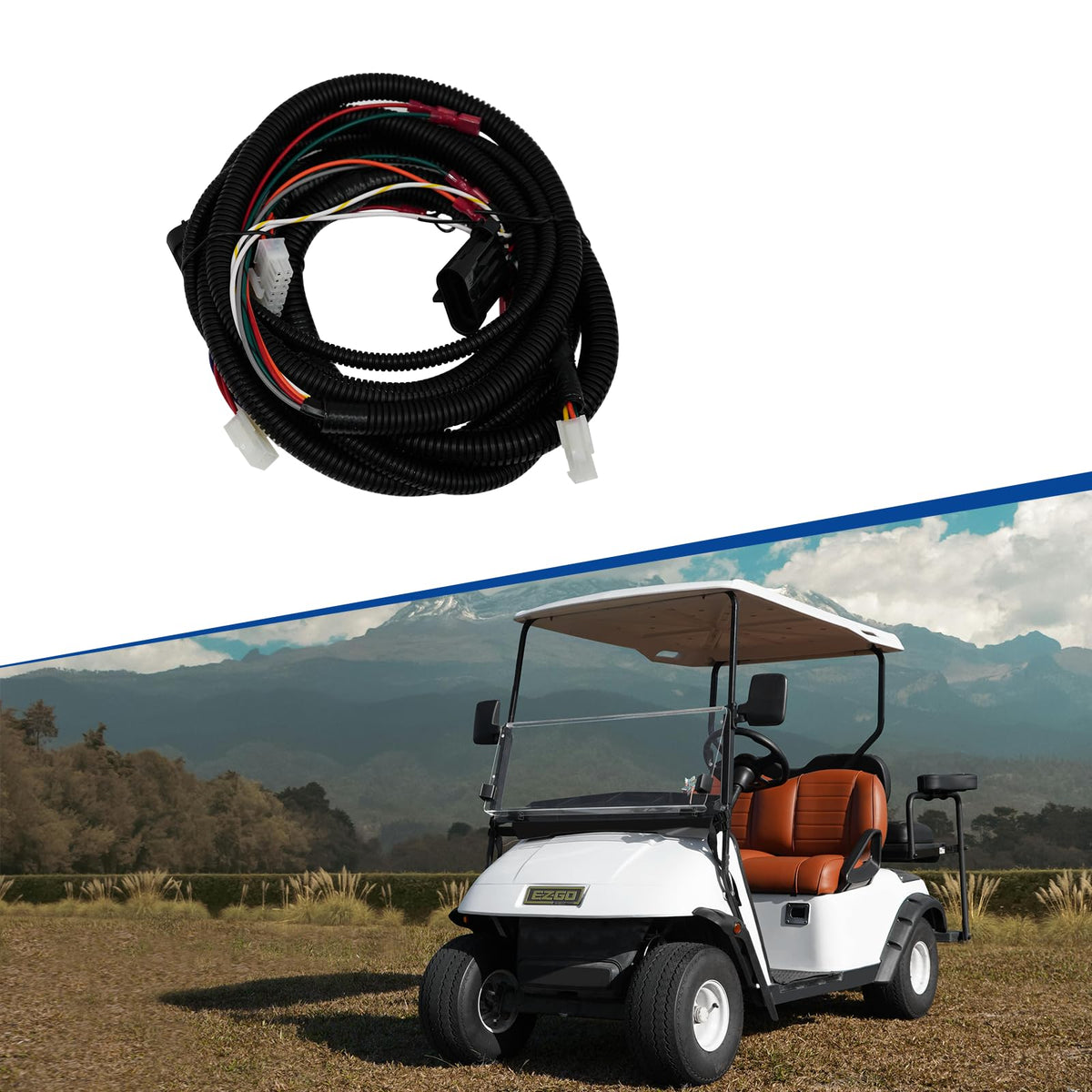

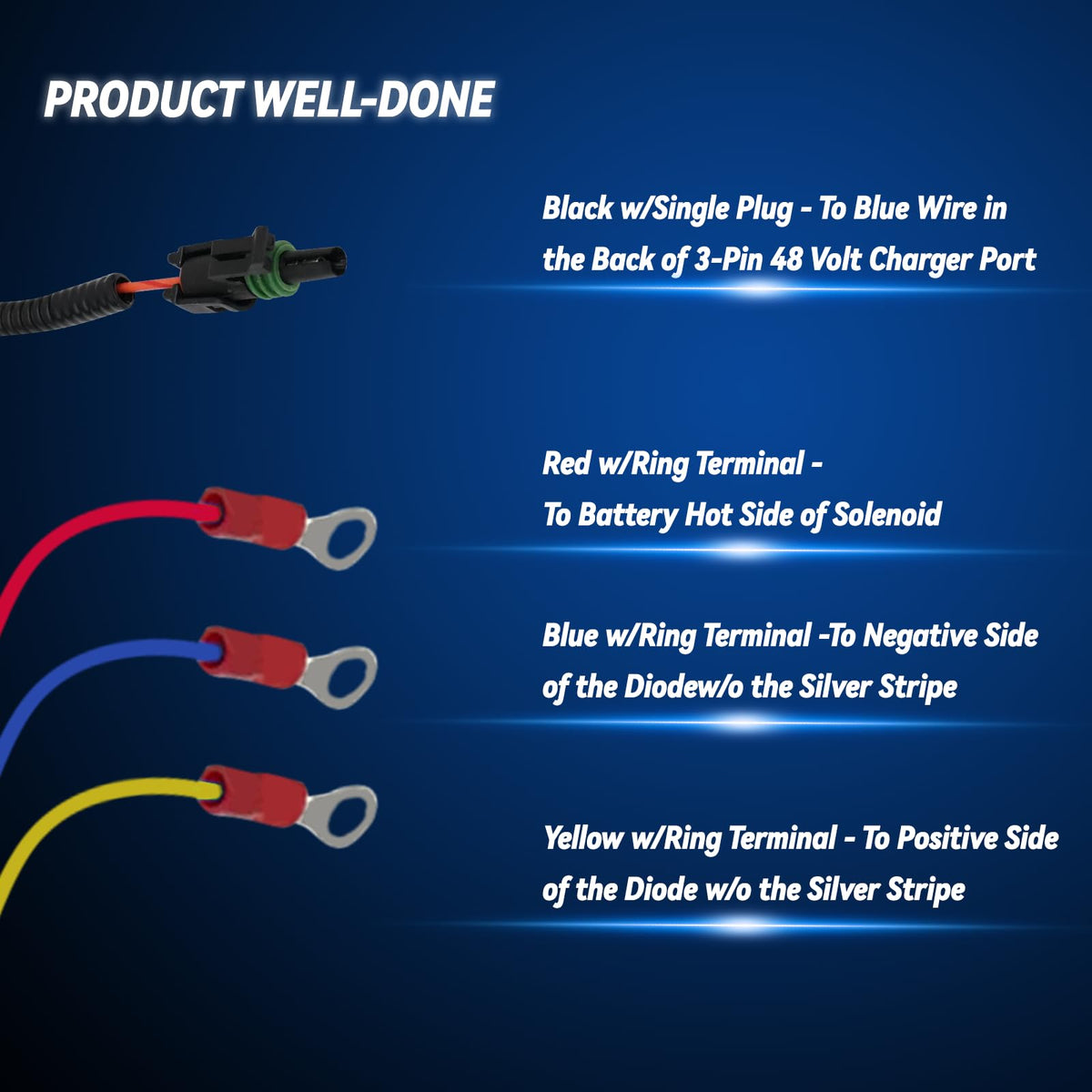

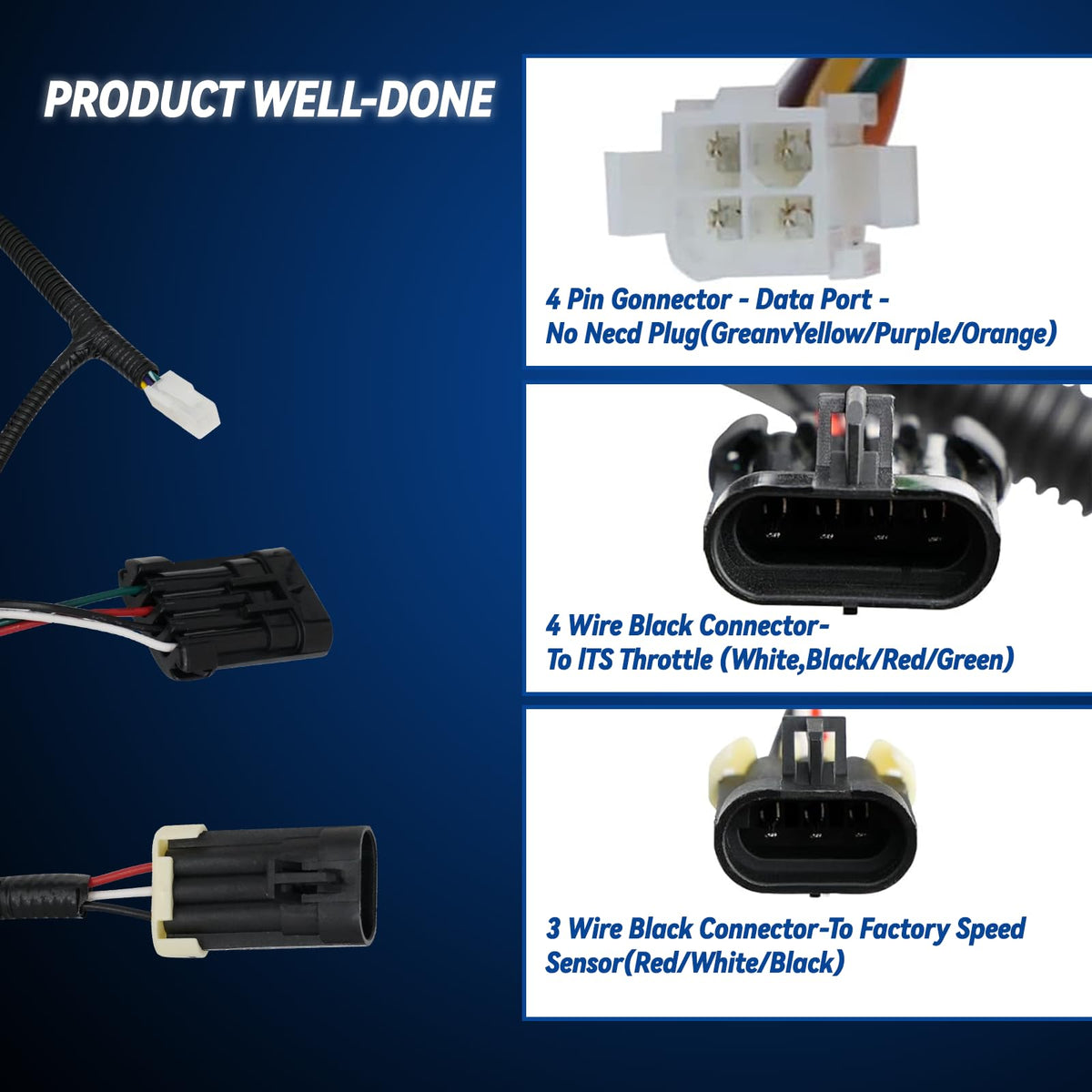

This harness comes as a complete 48V main line bundle with built‑in plugs and connectors that link essential parts such as forward and reverse switches, reverse buzzers, key switches, traction or run switches, master or factory controllers, ITS throttle sensors, and factory speed sensors. Each plug is designed to mate correctly, and you can verify connections by comparing to the provided pictures before wiring up your cart.

• For golf carts including EZGO TXT48 TXT Fleet 48V 2010-2022
• EZGO TXT48 Freedom TXT 48V 2010-2022 and EZGO TXT 2+2 48V 2010-2022

Durable build and flexible routing

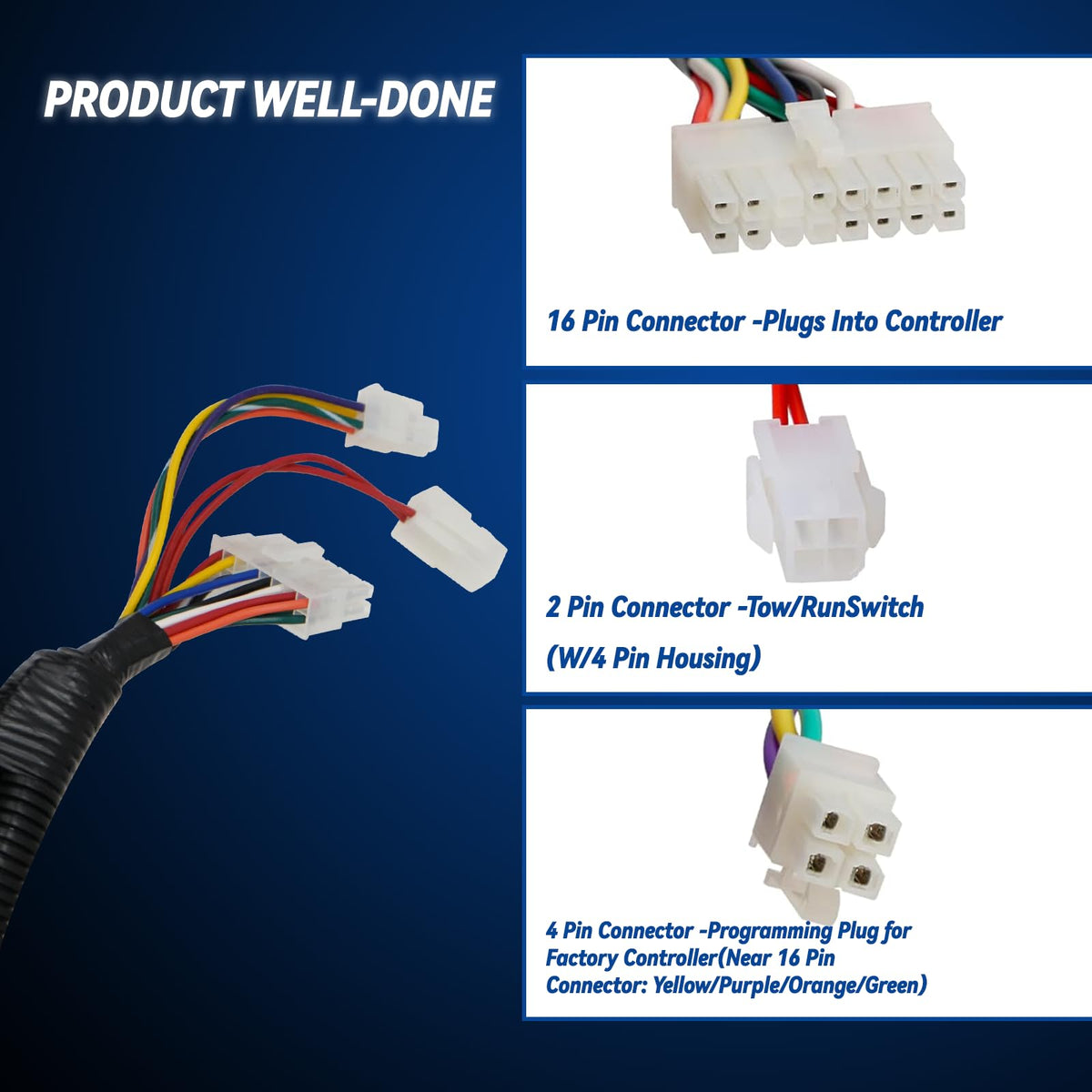

The main harness uses a strong plastic housing and reliable joints to help extend service life. The bundle is sized to accommodate 48V TXT48 systems and can be shortened or extended to fit different layouts, whether routed toward the rear body or the dashboard. Color‑coded connectors assist with alignment, making setup more straightforward.

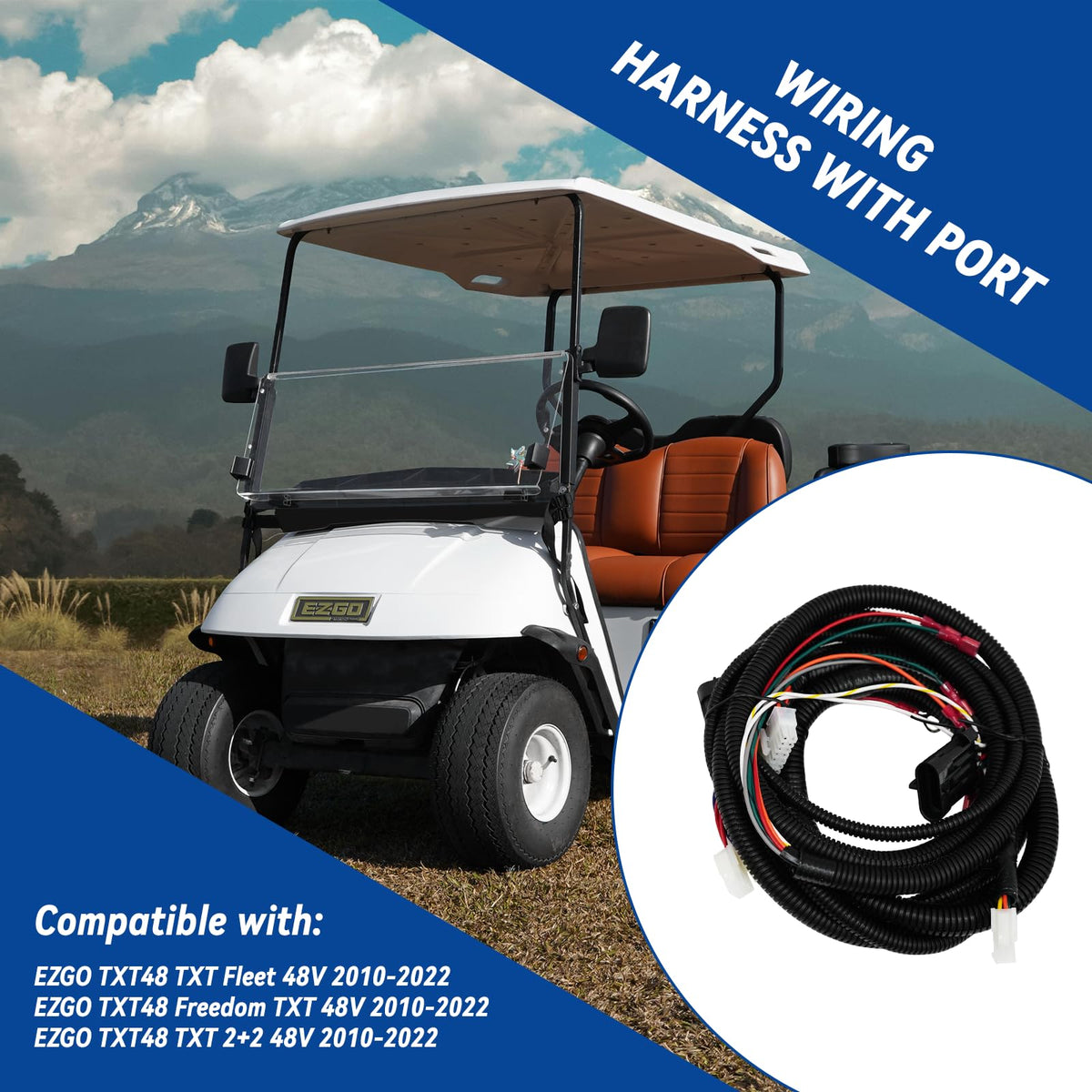

• Forward and backward switch wires can stay in the rear body or be routed to the dashboard
• Length adjustments are possible to fit your specific cart geometry

Upgrade options and installation tips

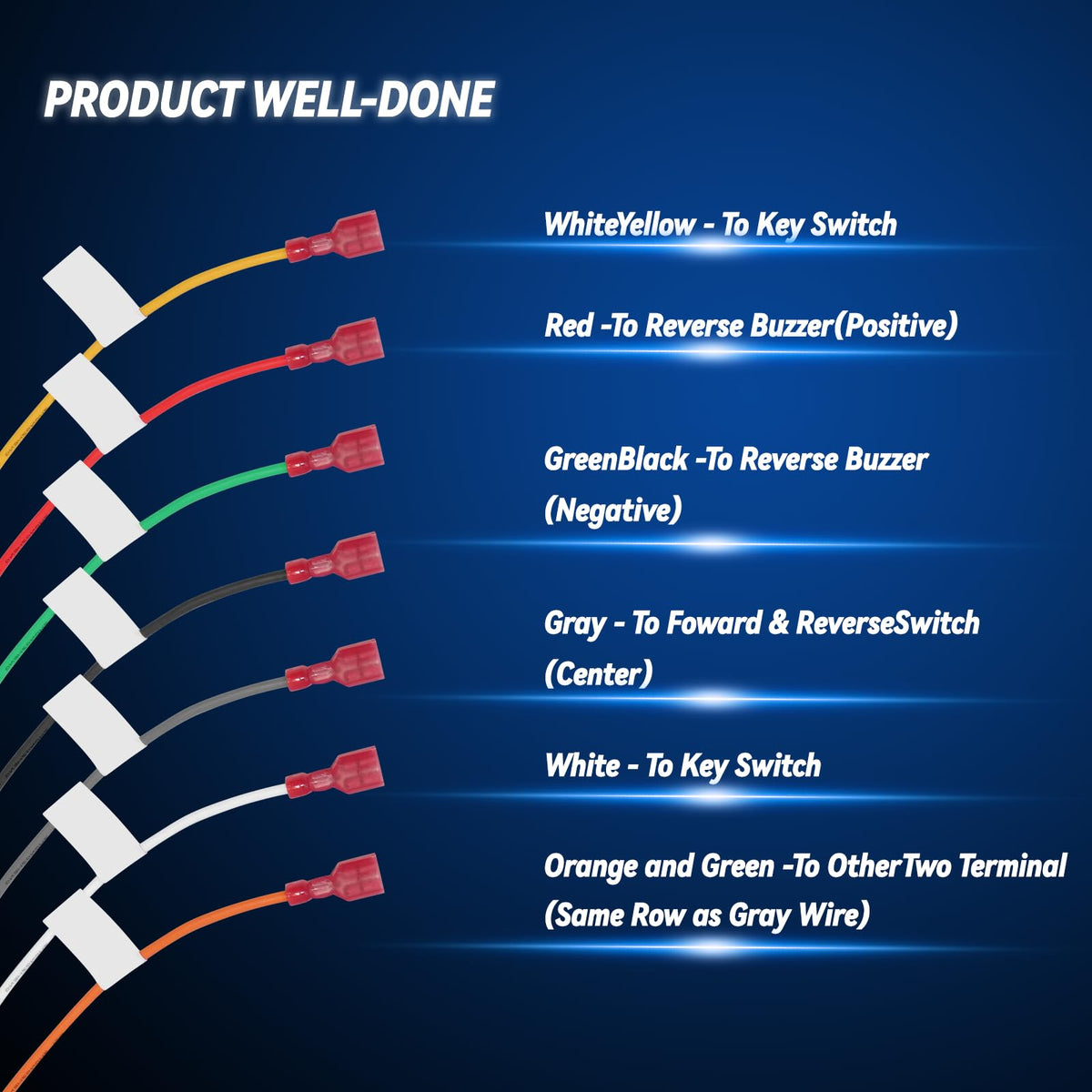

There is a potential upgrade path to a Navitas AC controller and motor combination if you’re exploring higher performance options (note that the controller and motor are not included). The harness ships as a complete main line bundle with the necessary connections, ready to integrate with compatible controllers and components.

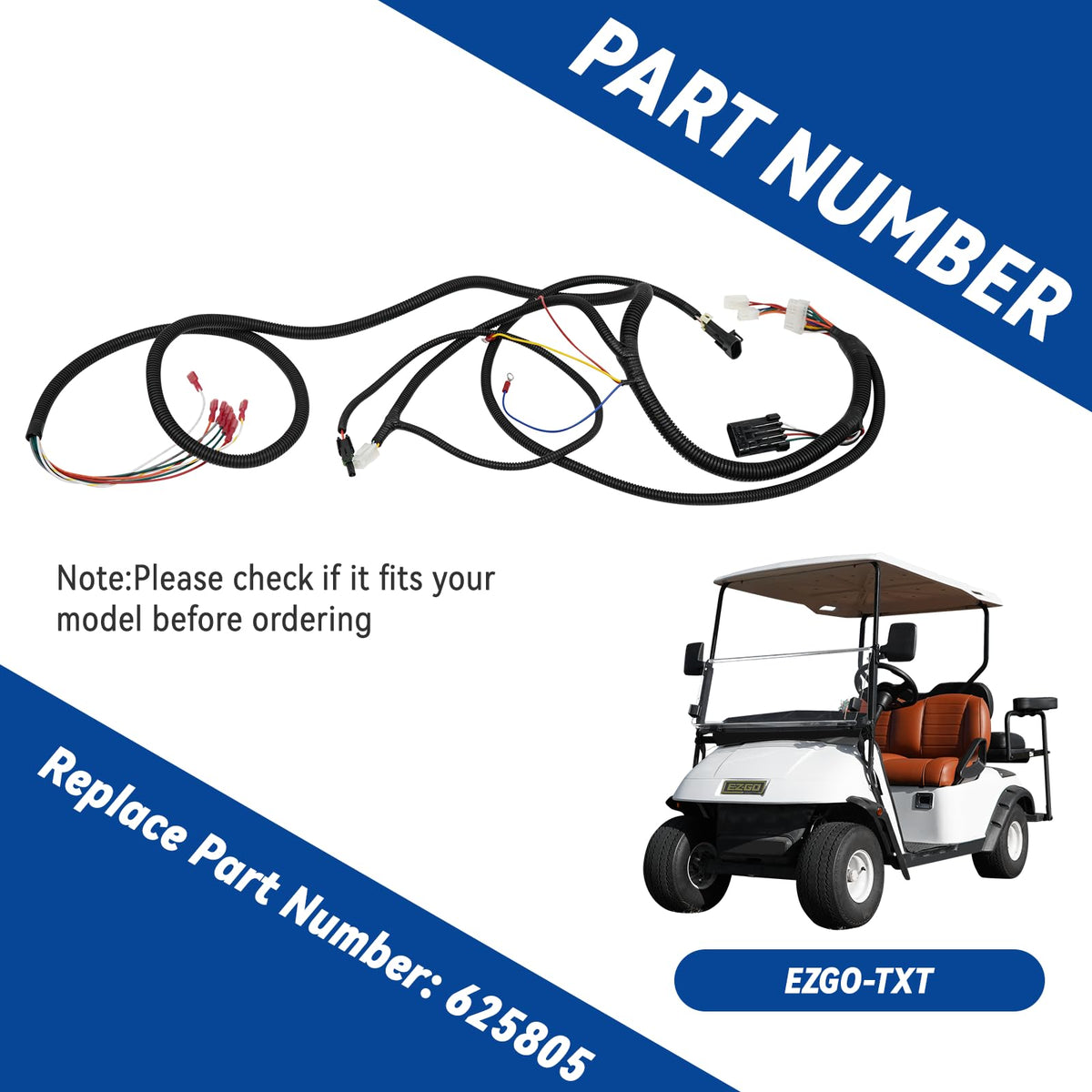

Before purchasing, review the cart’s maker, model, year, and VIN to help ensure compatibility. A careful comparison with the included diagrams and pictures can reduce the guesswork during installation and support a cleaner wiring job once everything is connected.

What you may gain

Users may notice a more organized wiring layout, improved plug reliability, and a straightforward pathway for connecting essential control modules. While individual results vary, the kit is designed to support a robust electrical backbone for EZGO TXT48 systems, with flexible routing to suit different cart configurations.
