10L0L Universal Golf Cart Battery Meter – 12V-72V LED Indicator | IP65 Waterproof

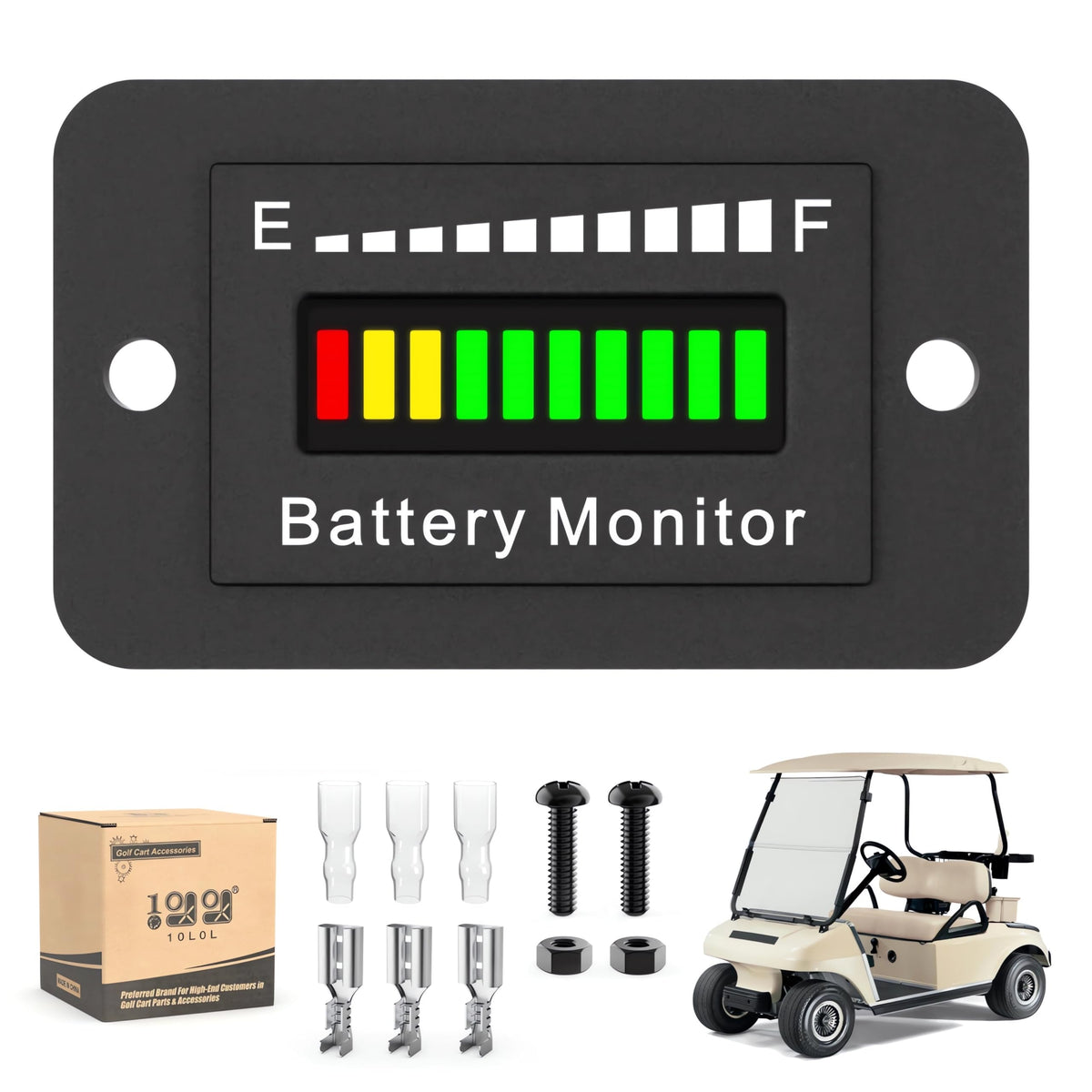

Meet the 10L0L Universal Battery Meter

The 10L0L Battery Meter is a compact, robust voltage indicator designed to help you stay informed about your battery’s remaining charge across a wide range of vehicles. Whether you drive a Yamaha, Club Car, EZGO, or another cart, this meter adapts to the system you use and displays charge visually for quick, on-the-go checks.

Rugged, reliable design

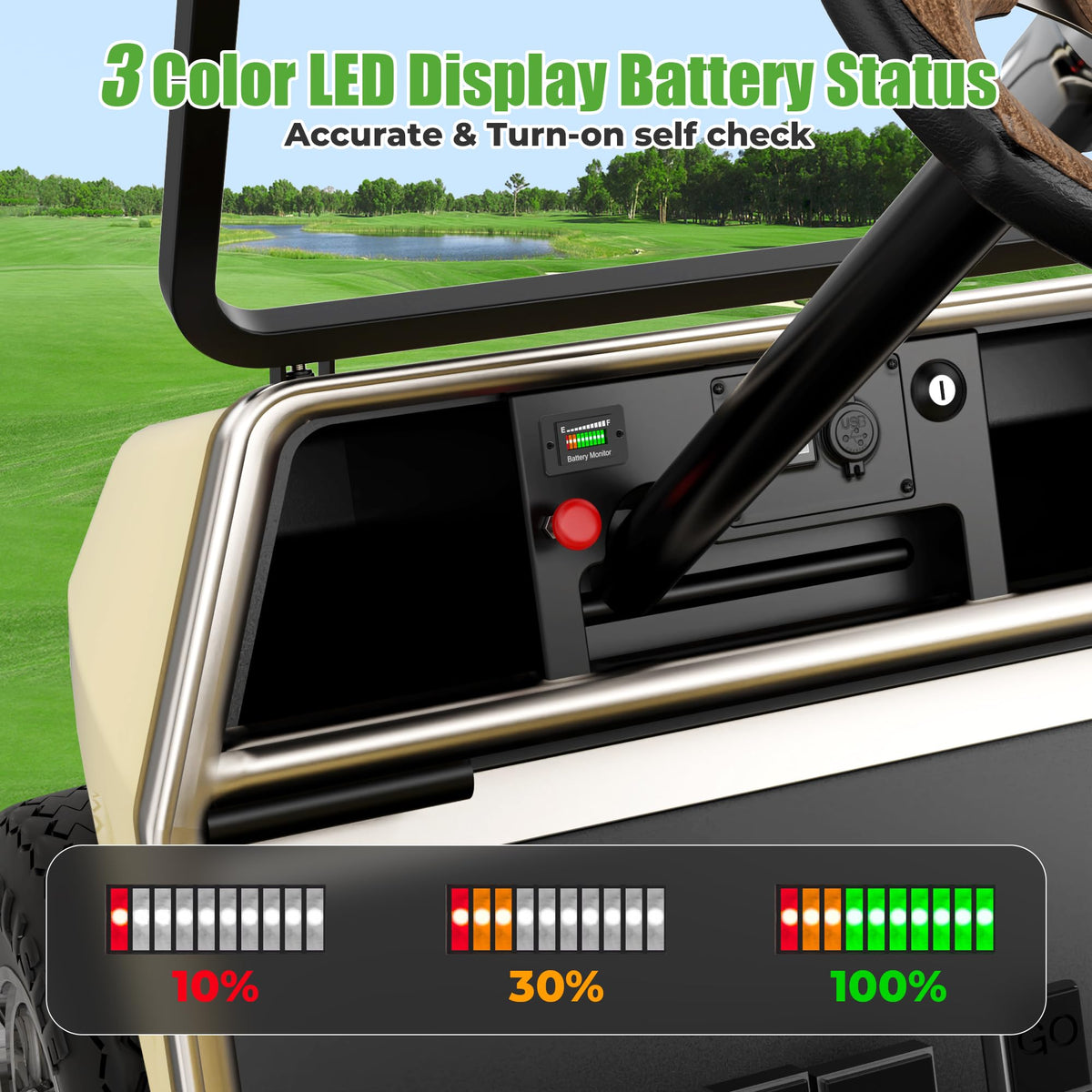

Built to endure the elements, the IP65-rated housing shields the electronics from rain and mist. A 10-segment LED bar provides a clear, at-a-glance readout: seven green LEDs indicate higher charge, two yellow suggest mid-range, and one red signals lower energy. On power-up, the LEDs flash to confirm a good connection between meter and battery, offering immediate feedback as you start your ride or service routine.

Flexible voltage and safe operation

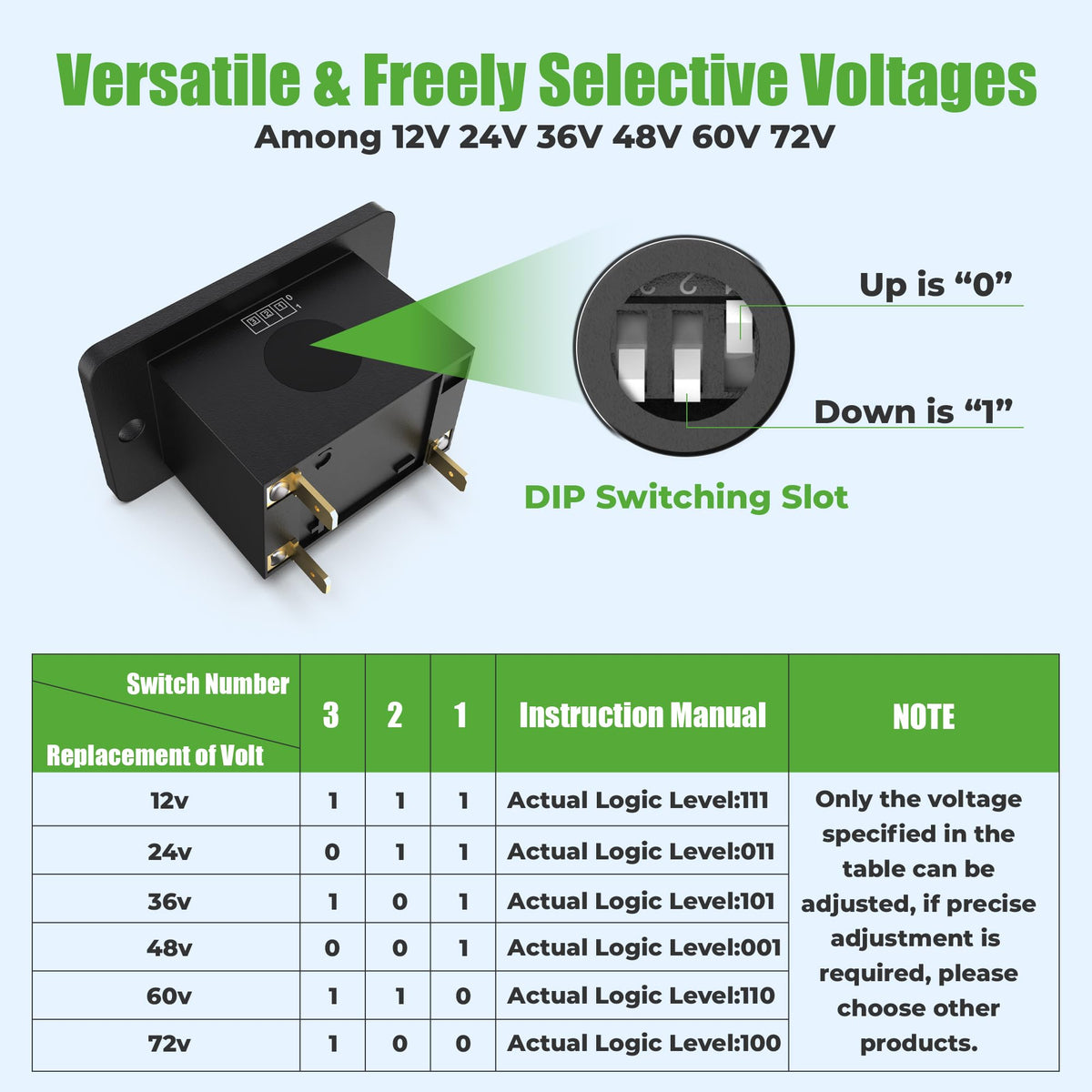

Switch among 12V, 24V, 36V, 48V, 60V, and 72V as needed for different carts or devices. The DIP switch alignment ensures the readout matches the actual voltage, reducing guesswork when your setup changes. The meter supports a variety of battery chemistries commonly used in outdoor machinery, from traditional lead-acid to modern lithium types.

Simple installation, minimal setup

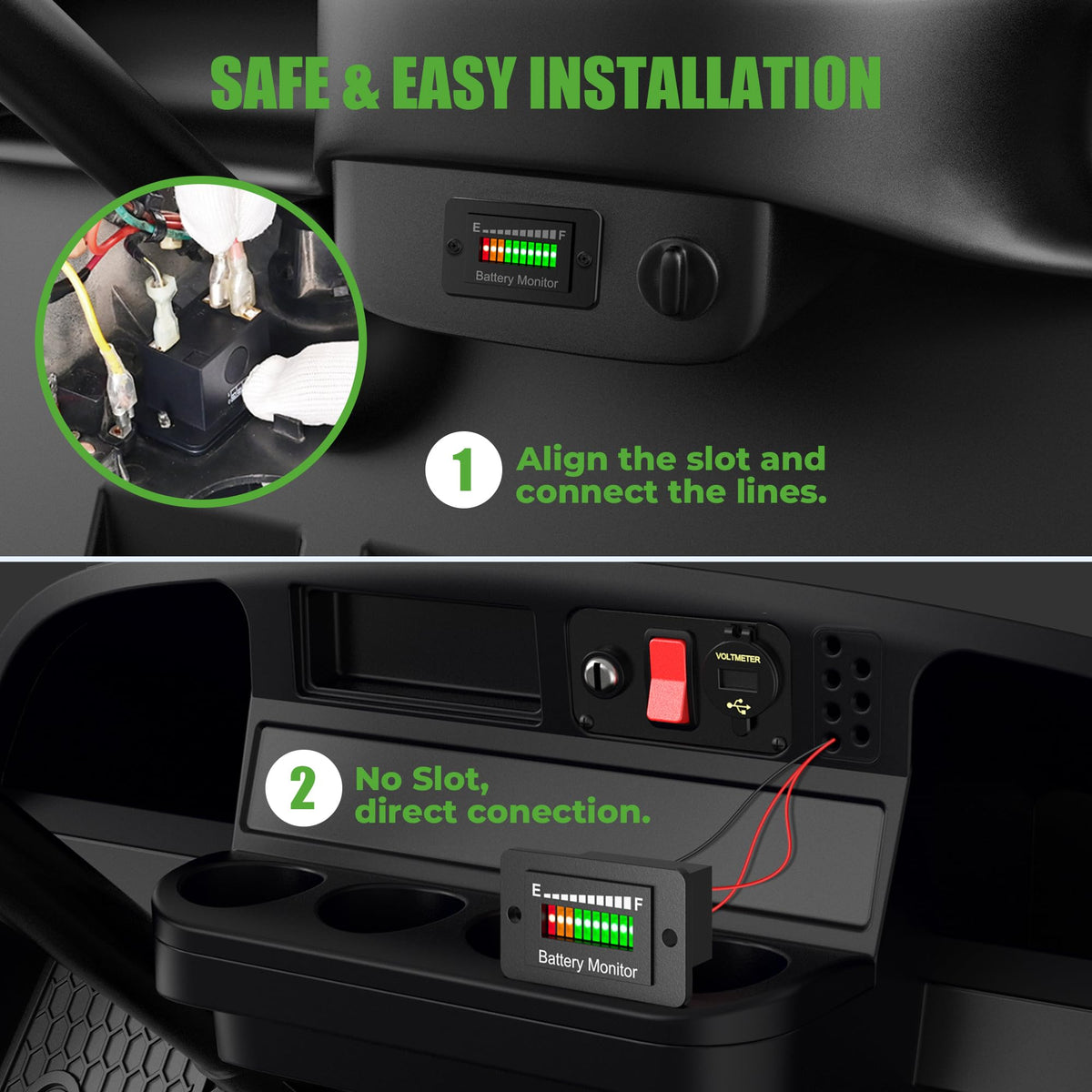

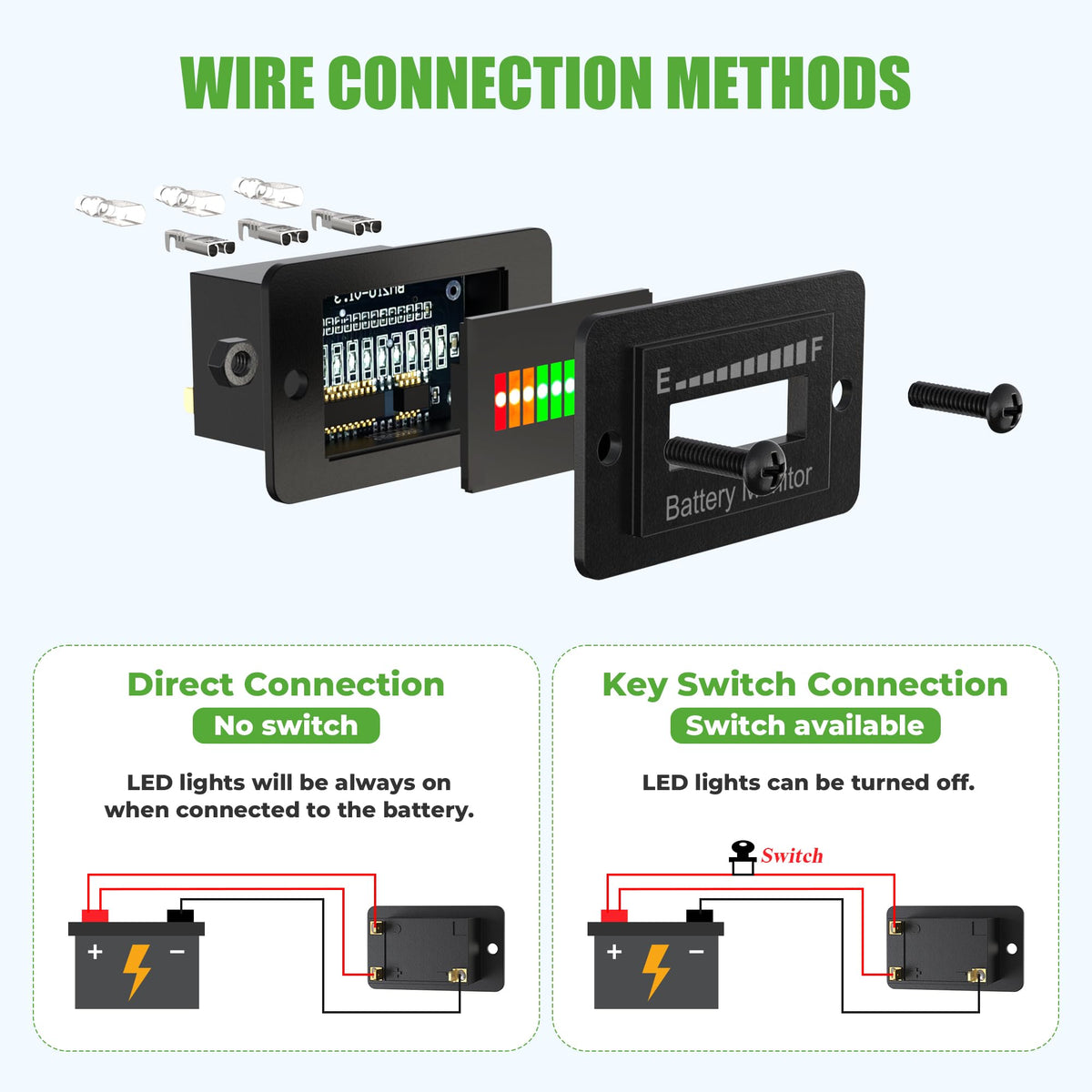

Installing is straightforward: you can create a precise 37x25 mm panel cutout or drop the unit into an appropriate slot. It offers two connection options, including a key switch or keyless variant, and it operates without an external power supply—just connect to the battery and monitor.

What you gain in daily use

• Crystal-clear visual feedback to plan charging and usage.
• Rugged protection against rain, dirt, and power surges with IP65 housing.
• Broad compatibility with 12V–72V systems across carts, motorcycles, mowers, and more.

• Effortless setup with a simple DIP switch reference and plug-and-play options.
• Flexible mounting choices for easy placement on different machines.
• Support for multiple battery types without needing extra equipment.

Note: The indicator provides a visual representation of remaining capacity based on the connected battery. It can assist in planning charges and trips, but it does not guarantee specific runtimes or performance outcomes.
