Third Speed Resistor - 7-Gauge Wire for Club Car DS/Carryall 1985-2003 (1014013) | Generic

Overview

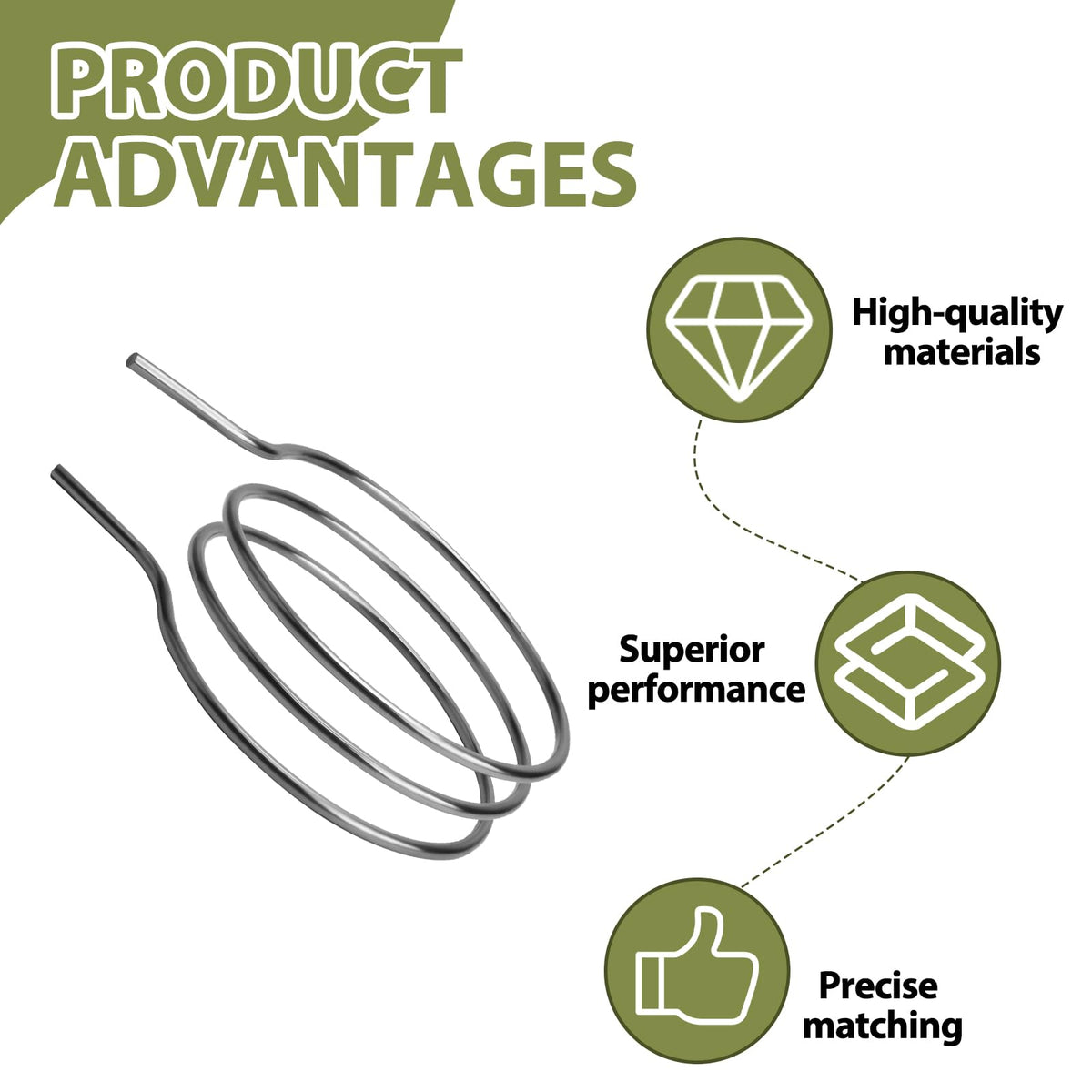

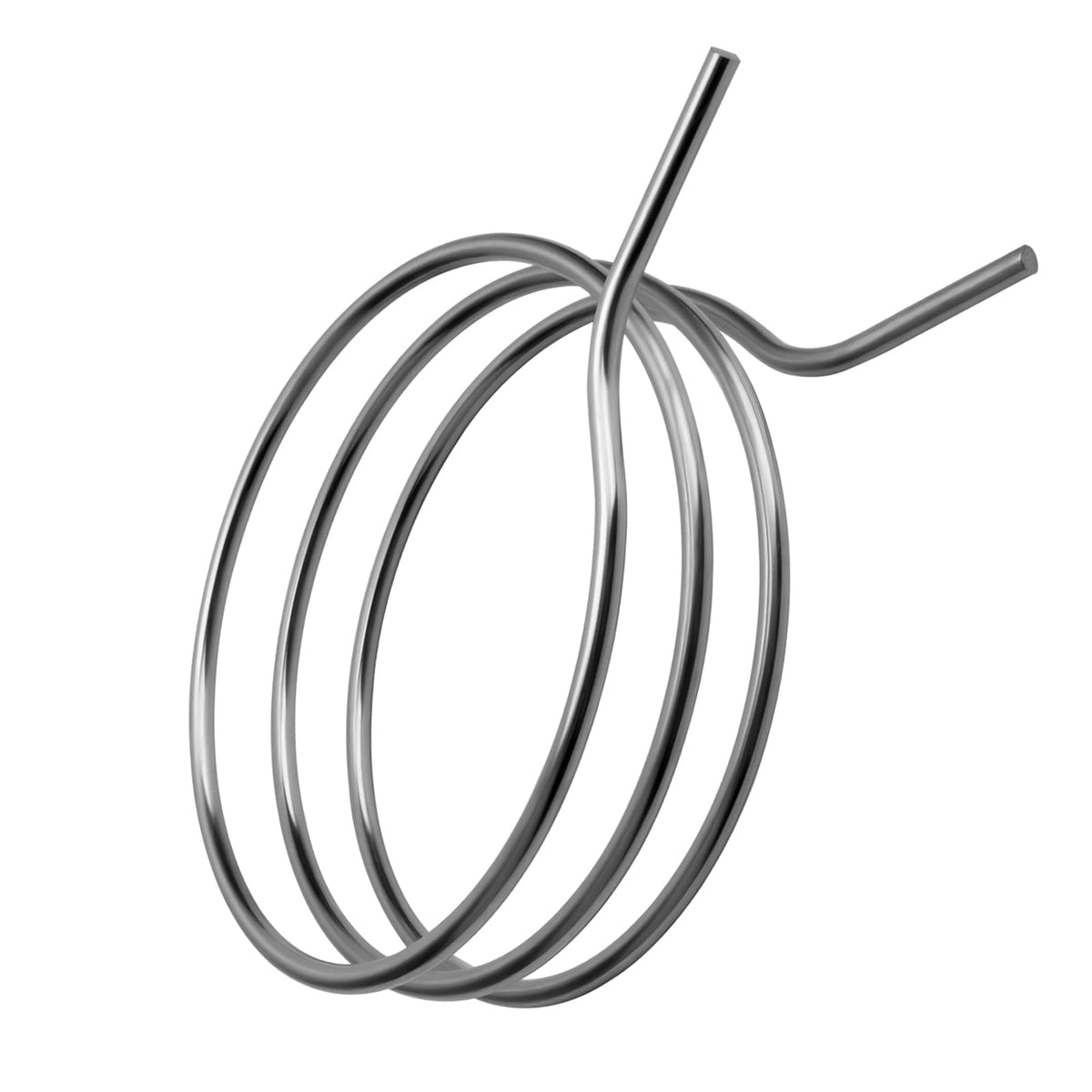

This third speed resistor combines rugged 7-gauge copper wire with a compact three-turn design to help you fine‑tune the third gear on classic Club Car DS and Carryall electric carts from 1985 through 2003. Built as a direct replacement, it supports steady current flow and smoother transitions in the motor’s third speed range, without altering other gears.

Designed for easy maintenance, this part is listed as a replacement for several known numbers, including 1014013, RES4013B1, RES5777, and N5777. By swapping in the resistor, you can restore expected third‑gear behavior and keep the electrical system aligned with the vehicle’s original design intent.

Compatibility and Design Details

The 7-gauge wire and three-turn configuration are chosen to provide a balanced resistance profile that helps manage current levels in the third gear. While it does not guarantee any specific performance outcome, the design aims to offer a dependable upgrade path for older carts that rely on robust resistance components for speed control.

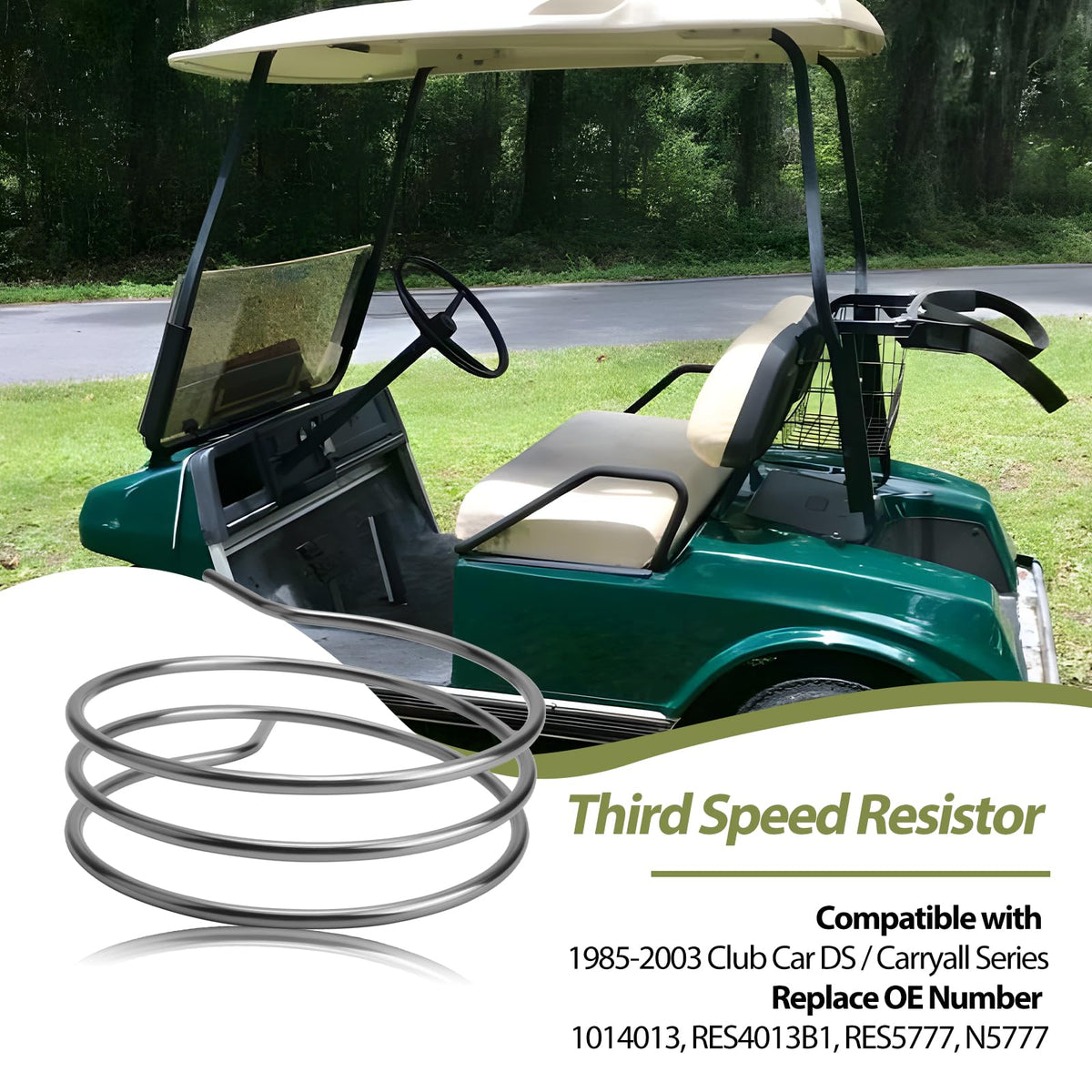

• Compatibility with Club Car DS and Carryall series built 1985–2003
• Replaces part numbers 1014013, RES4013B1, RES5777, N5777

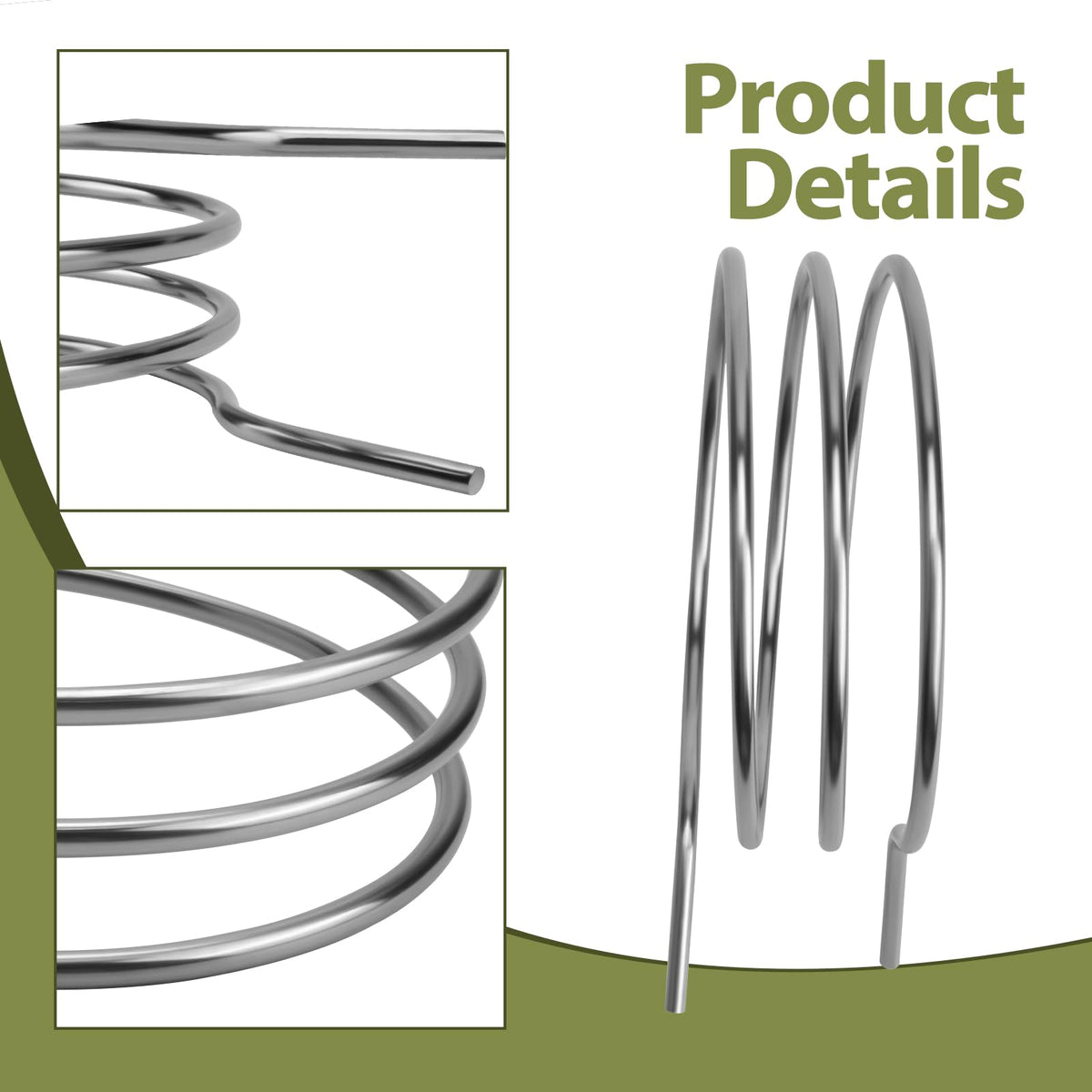

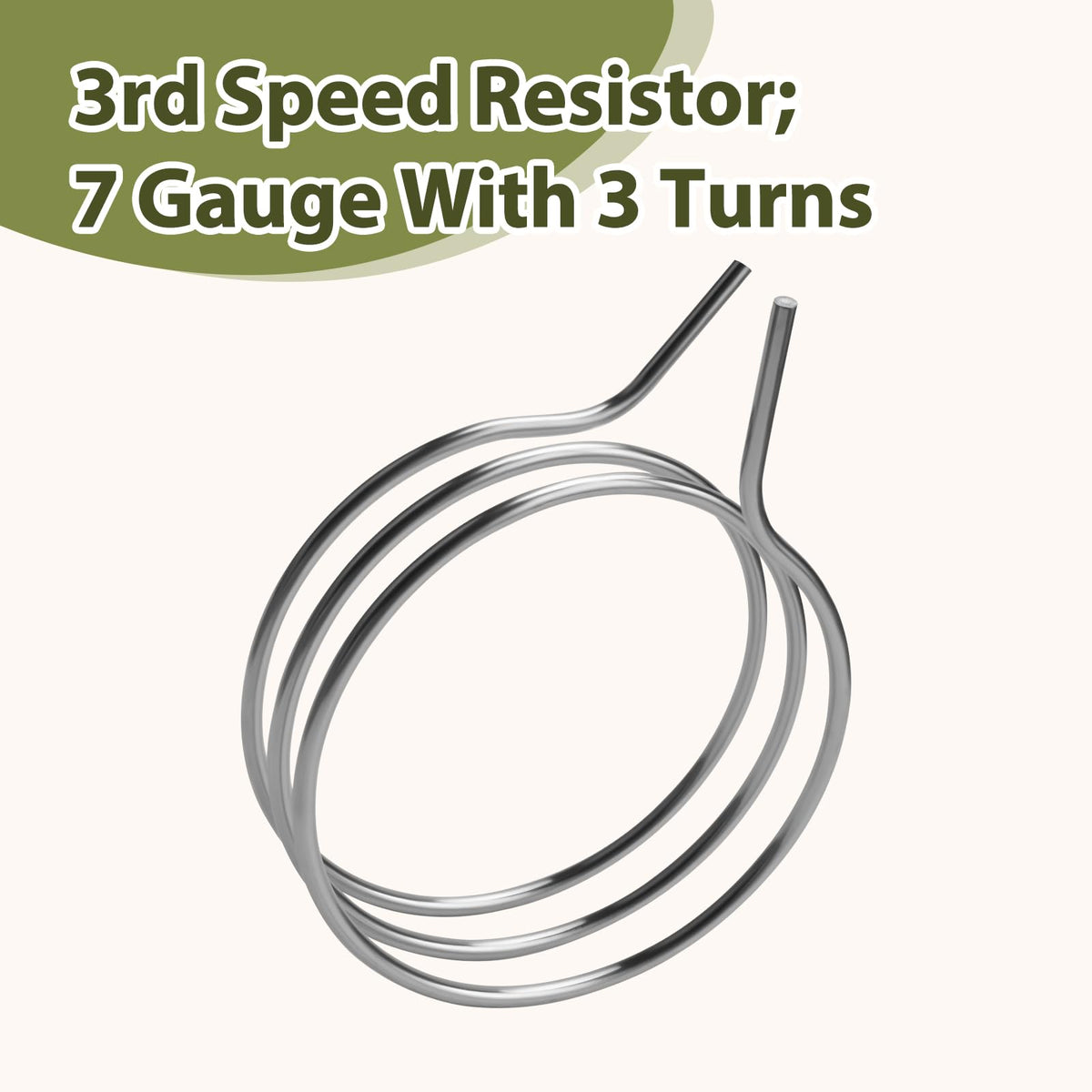

• 3 turns of 7-gauge copper wire for stable current regulation
• Suitable for on‑vehicle replacement with standard mechanical fitment

What You Might Notice

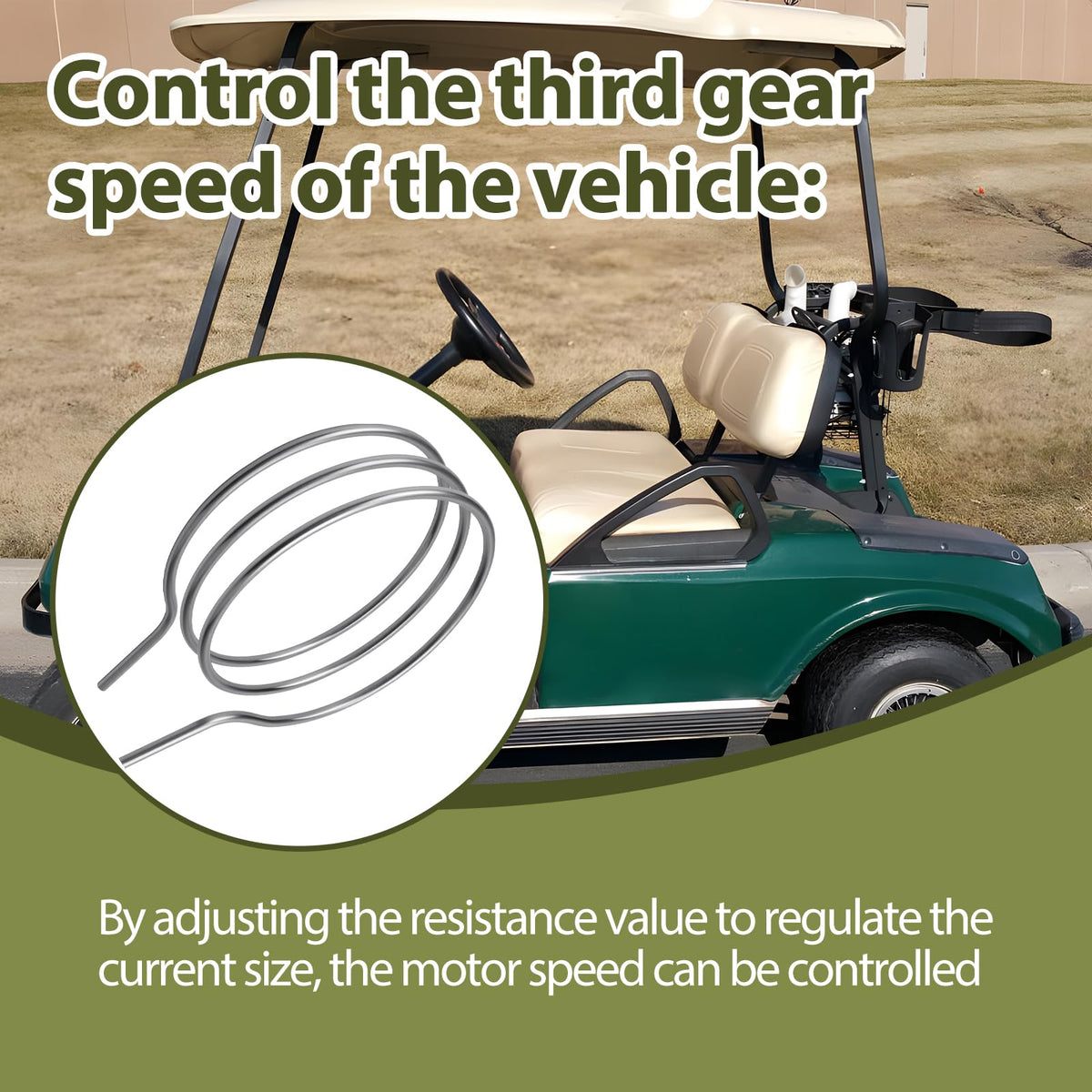

After installation, you may experience a more predictable third‑gear response with smoother acceleration characteristics. The resistor works as a tuning element in the motor circuit, allowing you to adjust the feel of the cart in the third speed range. Results will vary based on the overall electrical condition of the vehicle and how the controller interacts with the resistor.

• Potentially more consistent third‑gear speed control
• Enhanced compatibility with original Club Car electronics
• Easy replacement that aligns with established part references
• Low‑friction installation experience when following standard safety steps

Installation and Tuning Tips

Plan ahead for a careful replacement. Disconnect power, locate the third speed resistor position, and follow any available wiring diagrams to avoid misrouting wires. After installation, perform a cautious test run in a safe area to verify steady, controlled third‑gear behavior.

• Ensure power is fully disconnected before starting
• Verify wiring orientation matches the original setup
• Check electrical continuity at all terminals after connection
• Test drive gradually to assess third‑gear response
