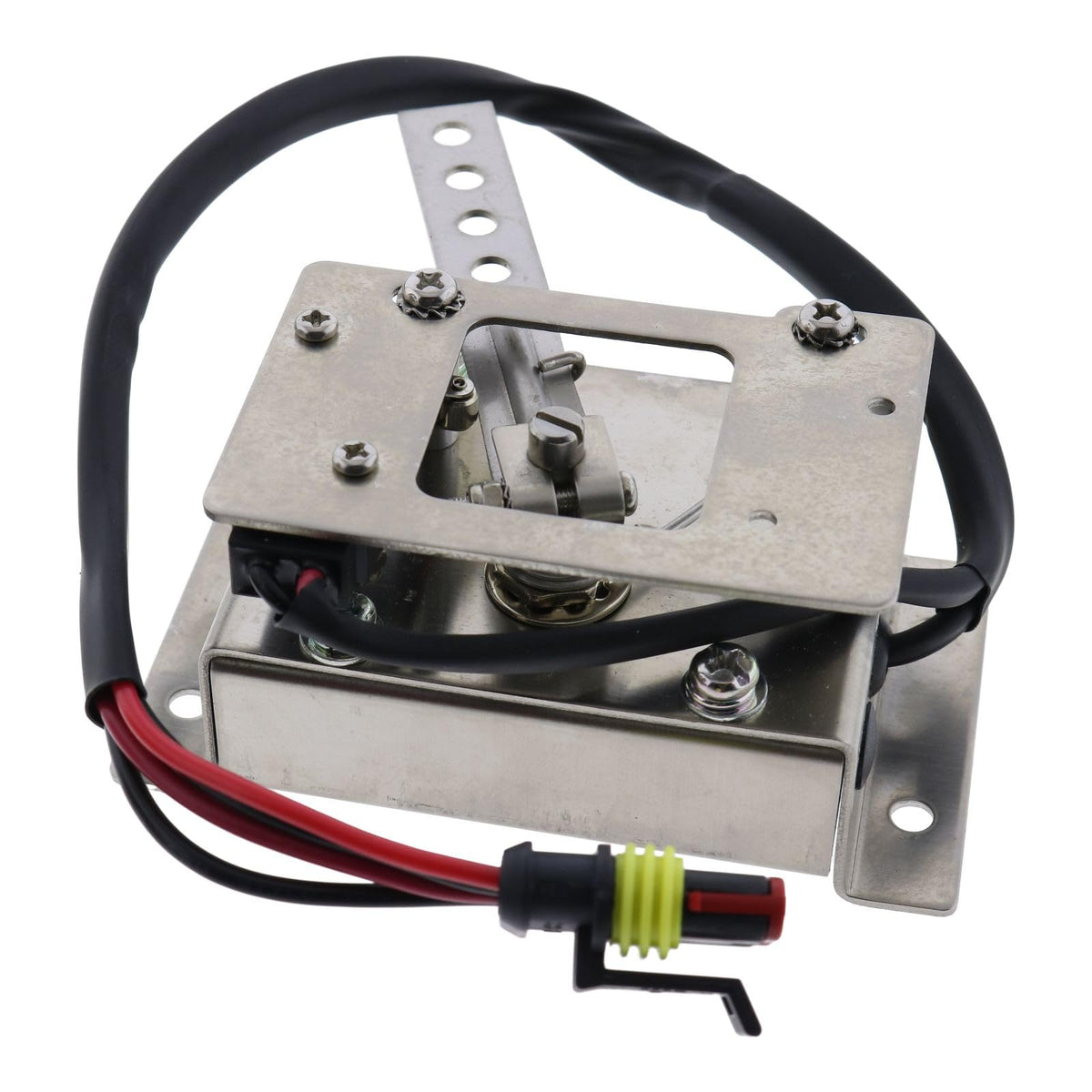

RONGPAS Throttle PB-6 0-5K Micro 3-Wire Golf Cart Potentiometer

Overview

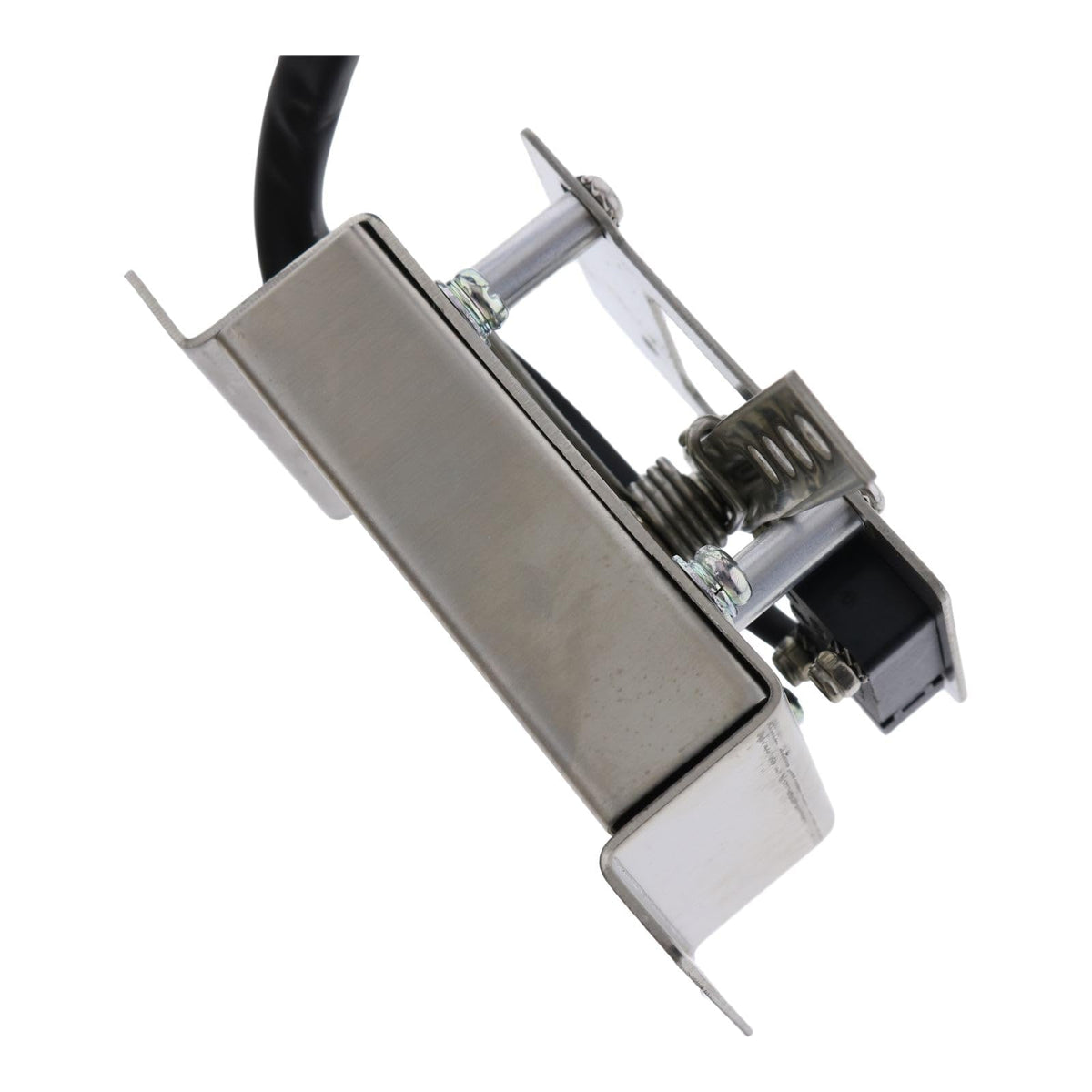

The RONGPAS Throttle PB-6 is a compact, durable throttle box designed for golf carts and EVs that use a 0-5K potentiometer input. When you press the pedal, the lever arm translates foot pressure into a variable resistance that the controller reads to determine how much current should be sent to the motor. A built-in safety switch helps reduce the chance of starting with the pedal fully pressed, adding a practical safeguard for everyday use.

Designed with real-world usability in mind, the PB-6 combines a sealed stainless steel case with a spring-return lever. This combination aims to provide a steady, repeatable pedal feel, even in environments where dust, moisture, or vibrations are factors. The lever is mechanically linked to the existing accelerator cable, so integration can feel familiar to technicians and DIY enthusiasts alike.

Key benefits

• Precise control: 0-5K resistance and a three-wire micro switch deliver smooth, predictable throttle input for responsive driving experiences.
• Wide compatibility: Specifically suited for golf carts and EVs using a 0-5K potentiometer, broadening installation options across models.

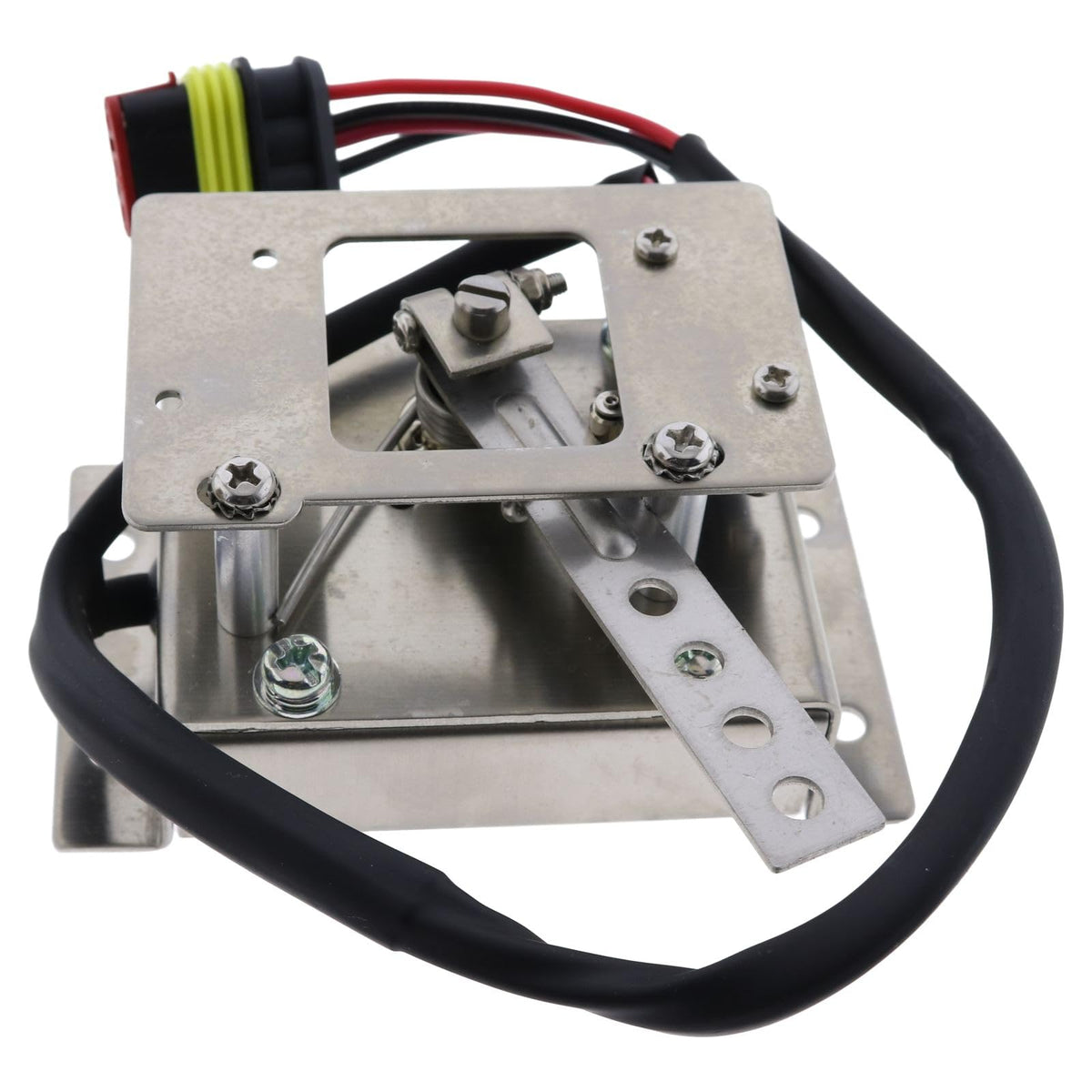

• Durable construction: Sealed, stainless steel housing protects internal components from grime and moisture, extending service life.

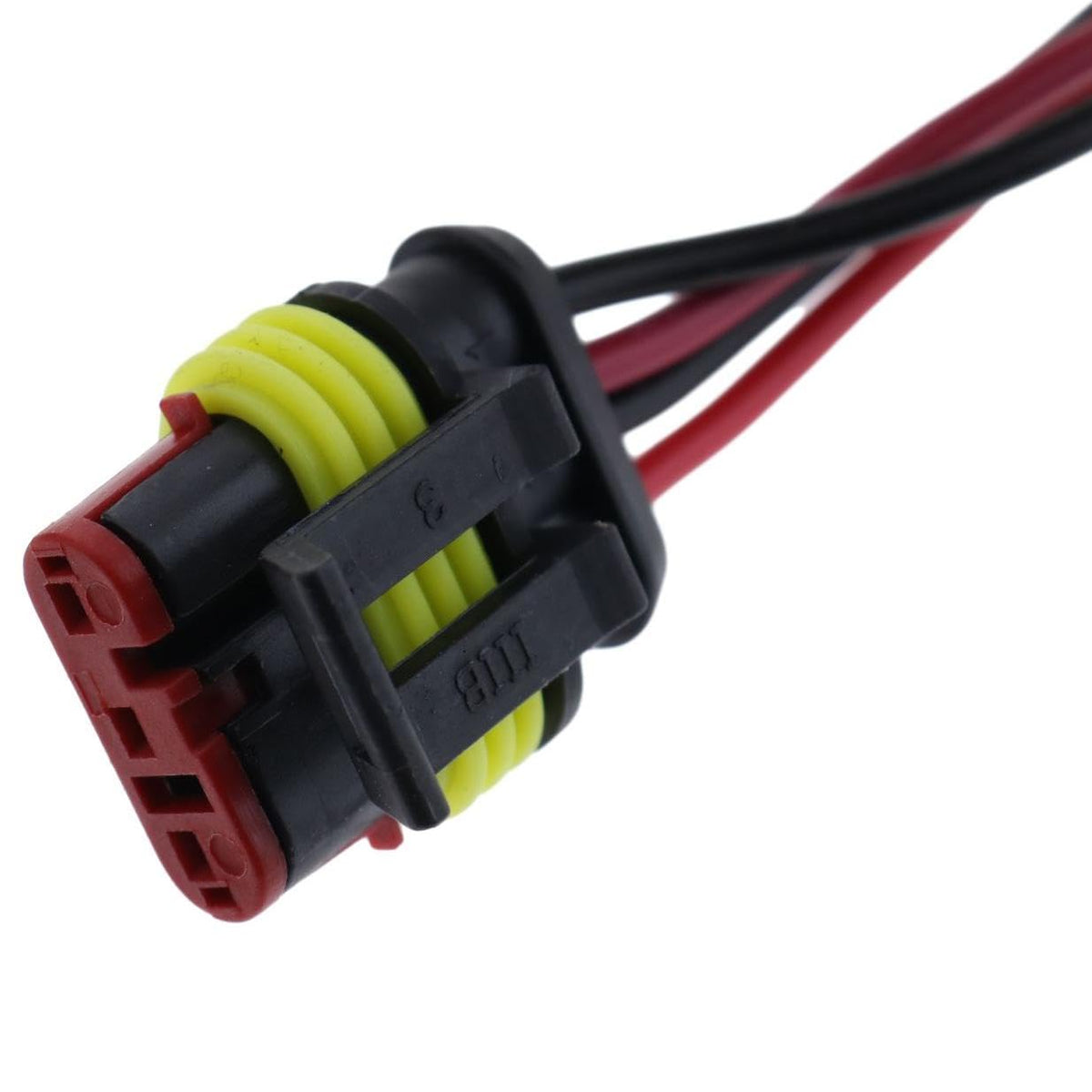

• Easy operation: A micro switch with three terminals simplifies wiring and integration with existing controllers.
• Simple installation: The PB-6 is designed to install with common golf cart systems, reducing setup time for projects or fleets.

Why you might choose the PB-6

In practice, this throttle box can contribute to a more controlled driving feel, whether you’re restoring an older cart, upgrading a fleet, or building a custom vehicle. The combination of a precise resistance range and a robust build means you may experience consistent pedal response across varied loads and terrains, while the safety features provide a practical safeguard during startup and maneuvering.

Specifications and fit

• Resistance range: 0-5000 ohms

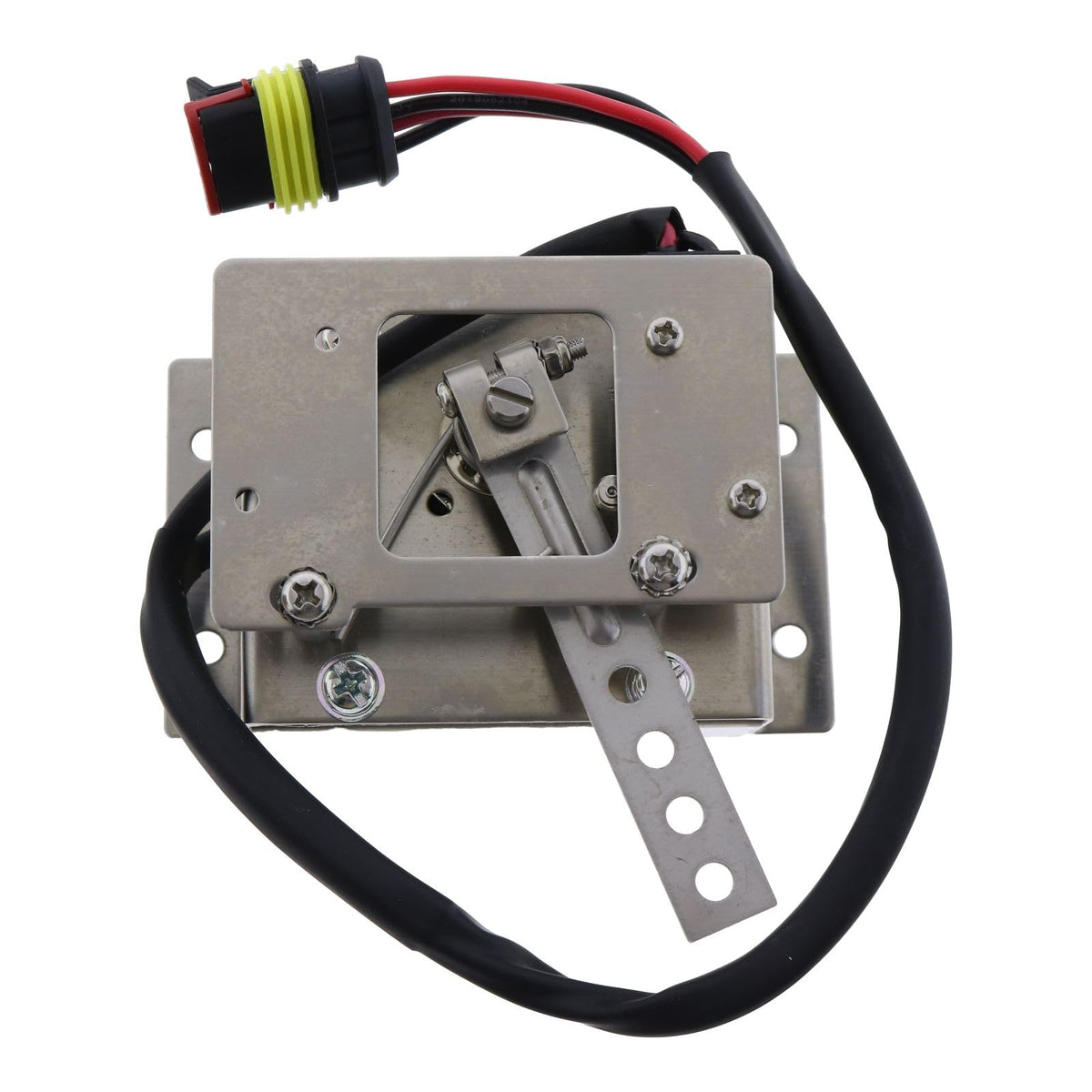

• Micro switch: 3-terminal
• Case: Sealed stainless steel

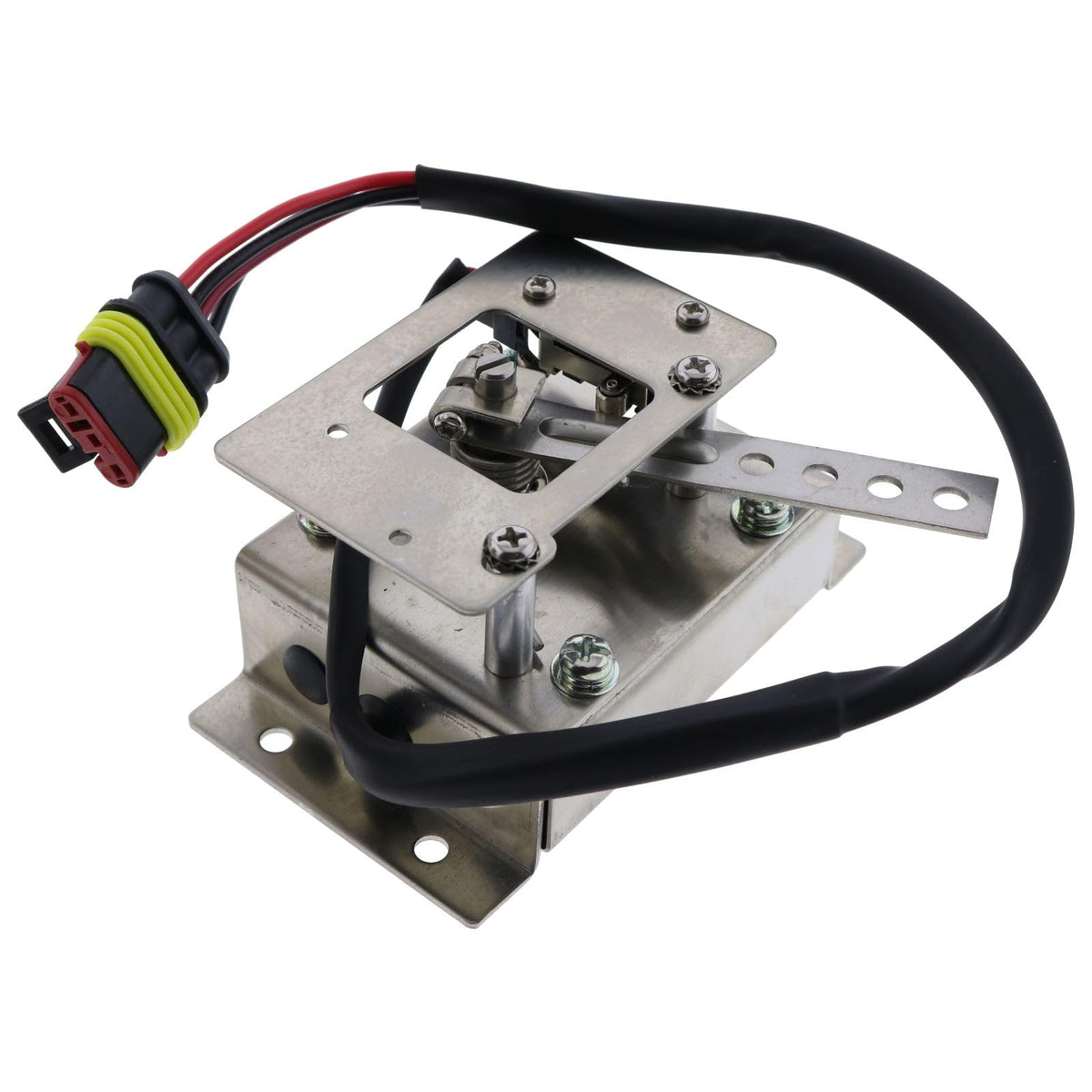

• Lever: Spring-return design

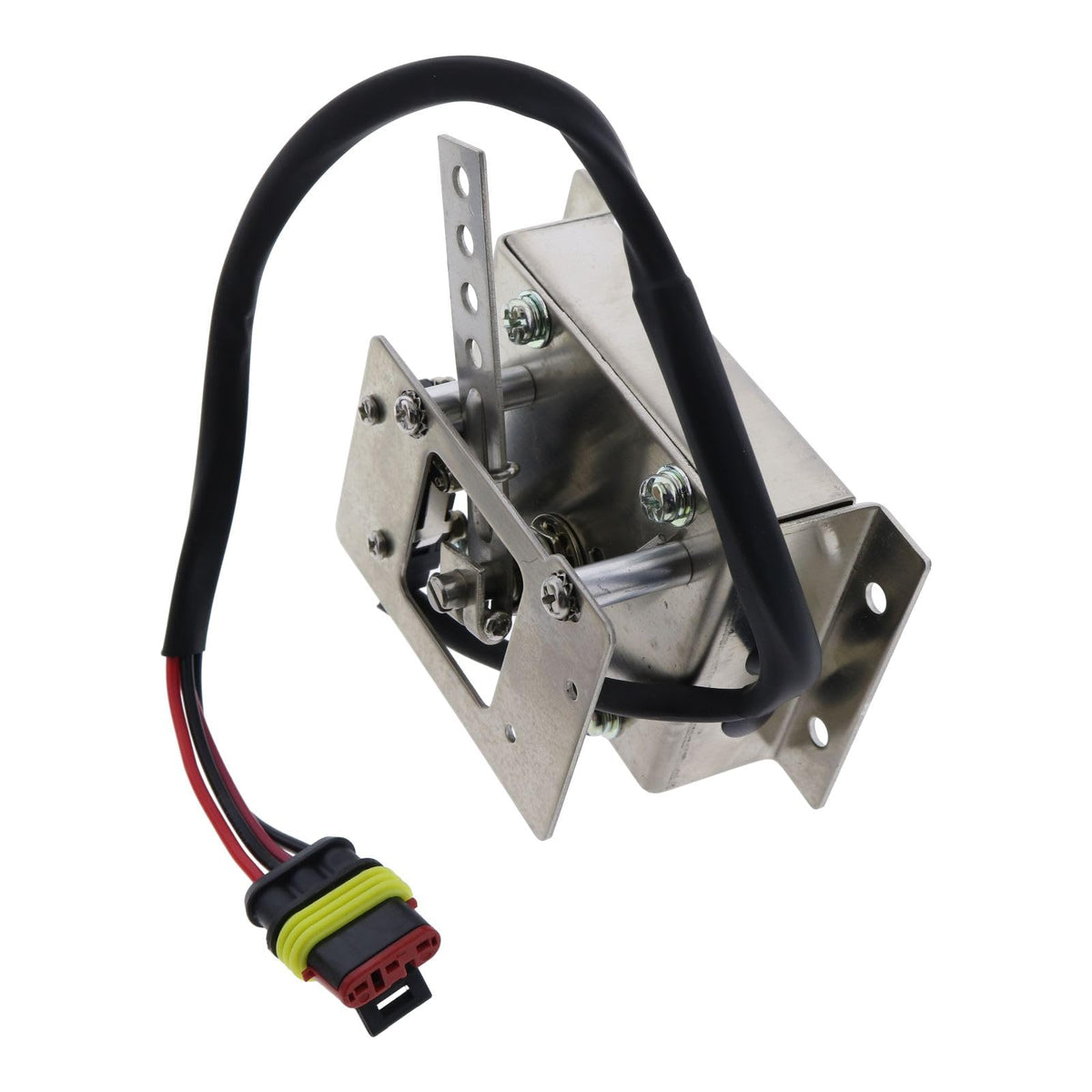

• Dimensions: 3-3/4" high, 4" long, 2-1/16" deep

Key installation notes: attach the box to the accelerator linkage, connect the three wires to the controller as per standard golf cart wiring diagrams, and ensure the safety switch is properly wired to monitor pedal position. The result should be a trustworthy throttle response that respects your cart’s performance limits.

Real-world use cases

• Restoration projects where aging throttle components are replaced with a modern, compatible unit.
• Fleet upgrades to standardize throttle input across a line of carts with 0-5K pots.
• Custom builds where a reliable, sealed throttle box helps protect sensitive electronics in variable climates.

Bottom line

The RONGPAS PB-6 Type 0-5K with Micro 3 Wires offers a thoughtful balance of precision, durability, and ease of installation. While it presents a practical upgrade option, actual performance will depend on your specific cart configuration and controller compatibility. Consider it a solid possibility for enhancing throttle response in suitable EV or golf cart systems.
