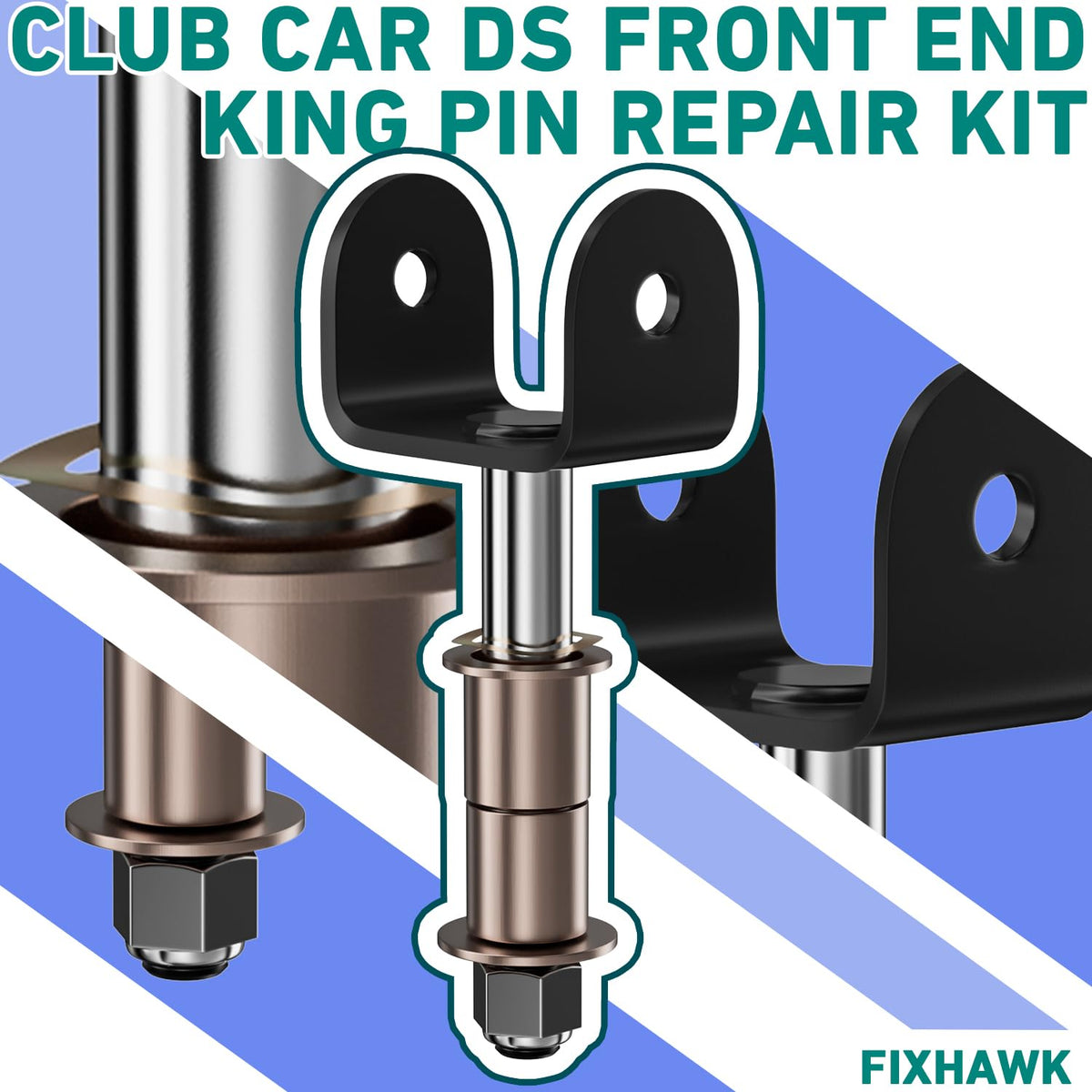

FIXHAWK Club Car DS Front End King Pin Repair Kit – 1981 Up, Replaces OEM 1016386 1010150 1016389

Overview

Upgrade your Club Car DS front-end with the FIXHAWK Front End King Pin Repair Kit. Crafted to replace worn king pins on Club Car DS models from 1981 onward, this kit is designed to support the steering system and front-end alignment while you refresh the components that keep your cart tracking true. It is built to work with Delta A plate and the nut, helping preserve mounting geometry as you refresh the critical front-end parts.

Fitment and Compatibility

This kit is built for Club Car DS 1981-up gas and electric carts. It is designed to replace worn original parts on both sides of the front end, bringing renewed stability to steering and alignment without requiring a full chassis repair. Detailed OEM references are included to help confirm compatibility during purchase.

Included components are matched to work together as a complete refresh for the front-end assembly. You’ll receive two king pin assemblies (OEM# 1016386), two upper main bushings (OEM# 8067), two lower main bushings (OEM# 7048), two thrust bearing washers (OEM# 1010150), and two kin pin wave washers (OEM# 1016389).

What You Might Experience

Replacing worn king pins and bushings can help reduce loose steering play and improve front-end feel. Results vary by cart condition and use, but potential benefits include firmer steering response and more predictable alignment after a refresh. These outcomes are possibilities, not guarantees, depending on your cart’s starting state.

Durability and Maintenance

Designed for regular use on golf carts, the kit supports continued performance in everyday driving, maintenance routines, and seasonal checks. Regular inspection of the front-end after installation can help you monitor wear and plan future refresh cycles, contributing to safer, more confident rides.

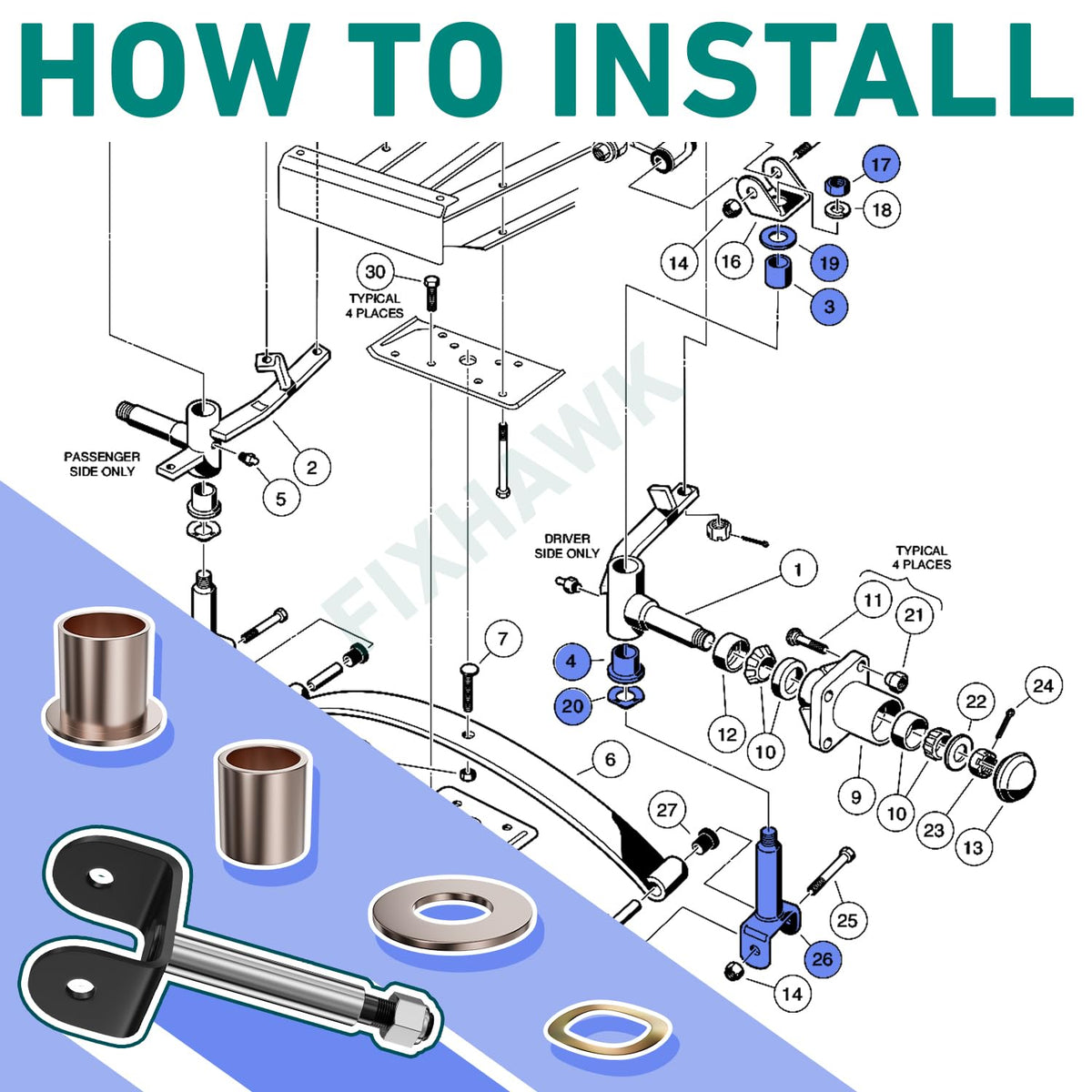

Installation Notes

Good mechanical skills are helpful for installation, which takes approximately two hours. Following the included notes will help you align components correctly and complete the refresh without needing a full-frame repair. If you have questions during installation, reach out to FIXHAWK support for guidance.

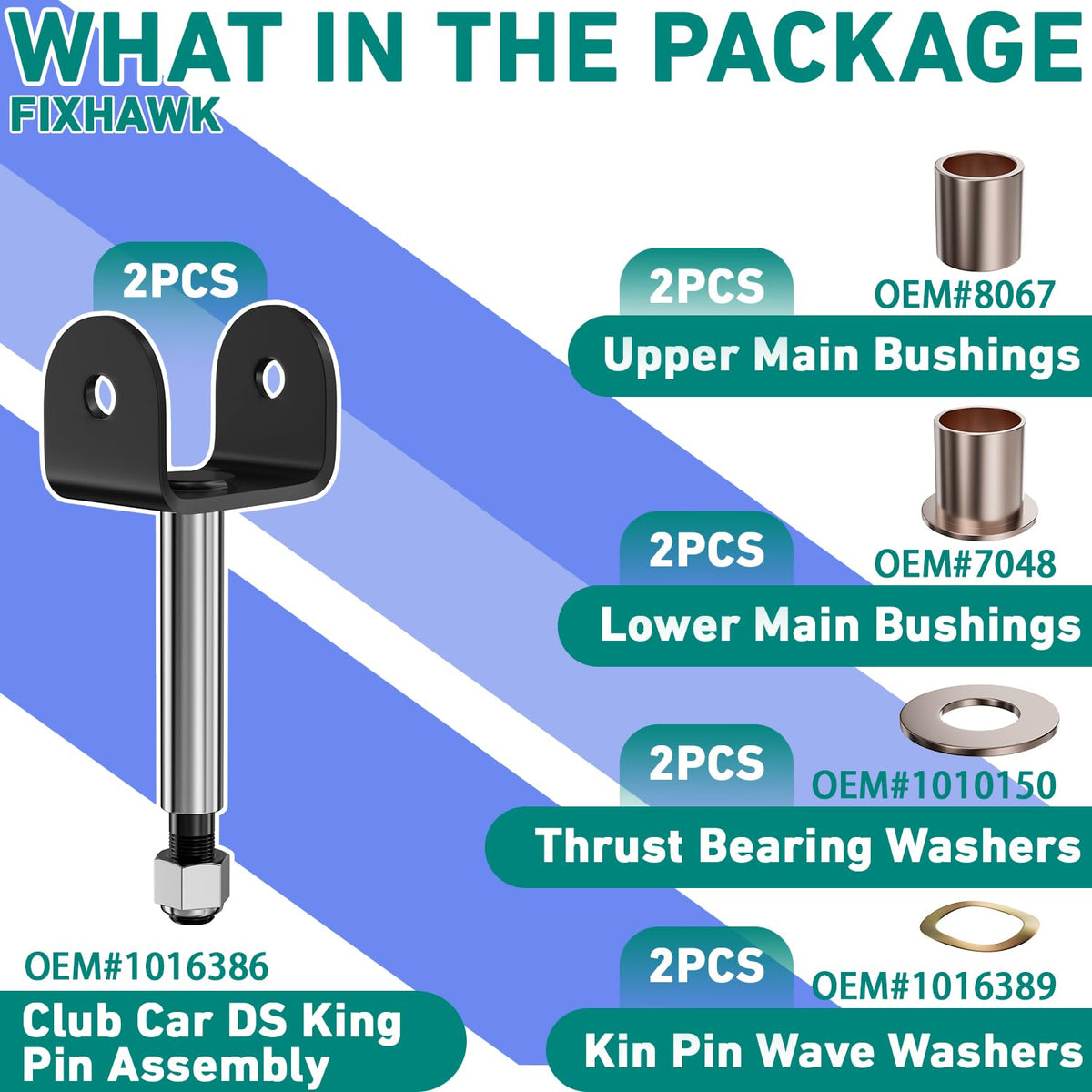

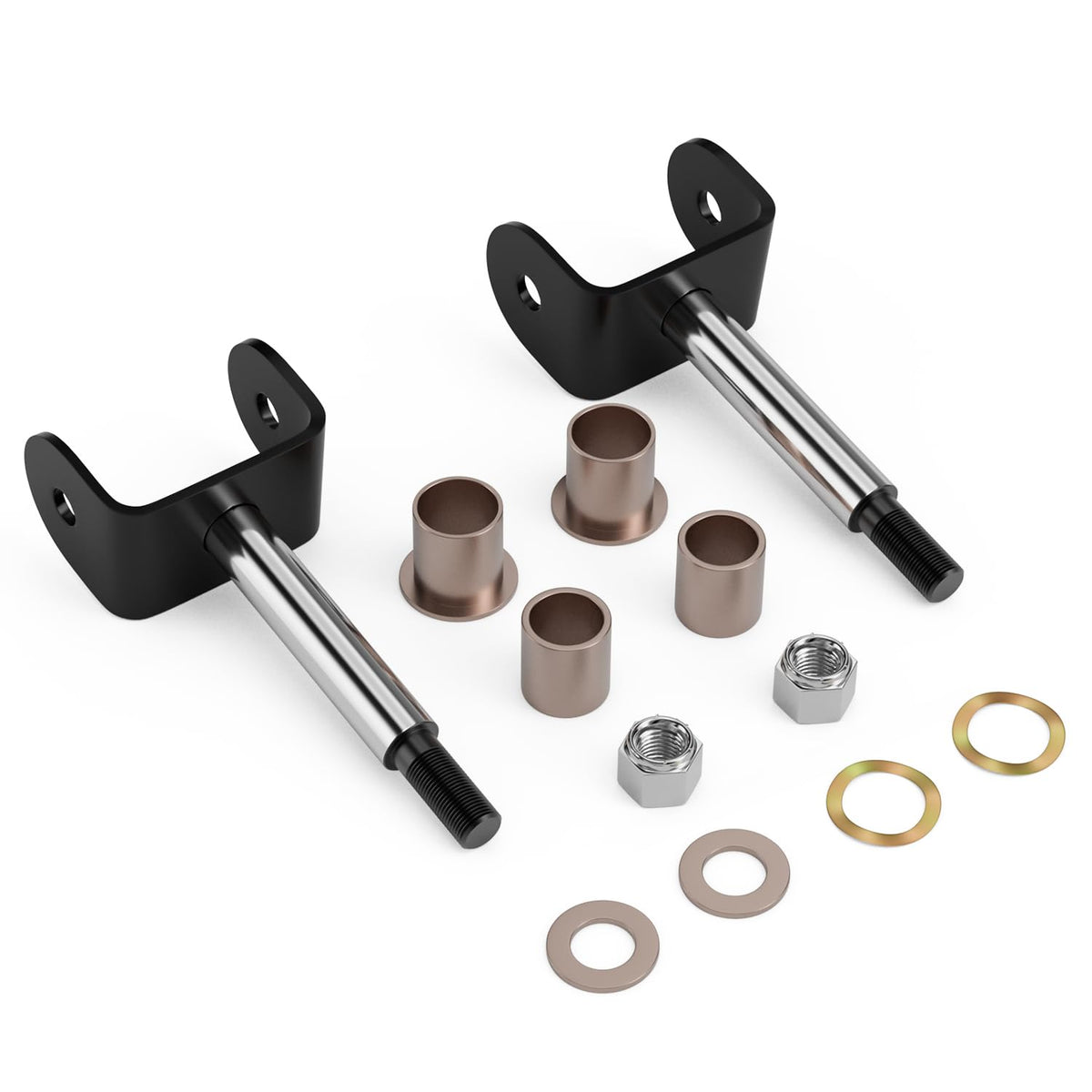

What’s Included

• 2x Club Car DS King Pin Assembly (OEM# 1016386)
• 2x Upper Main Bushings (OEM# 8067)
• 2x Lower Main Bushings (OEM# 7048)
• 2x Thrust Bearing Washers (OEM# 1010150)
• 2x Kin Pin Wave Washers (OEM# 1016389)

Purchase note: This kit requires basic mechanical skills and about two hours of work. If you need help during use, our team is ready to assist with fitment questions, installation considerations, or alignment concerns.
