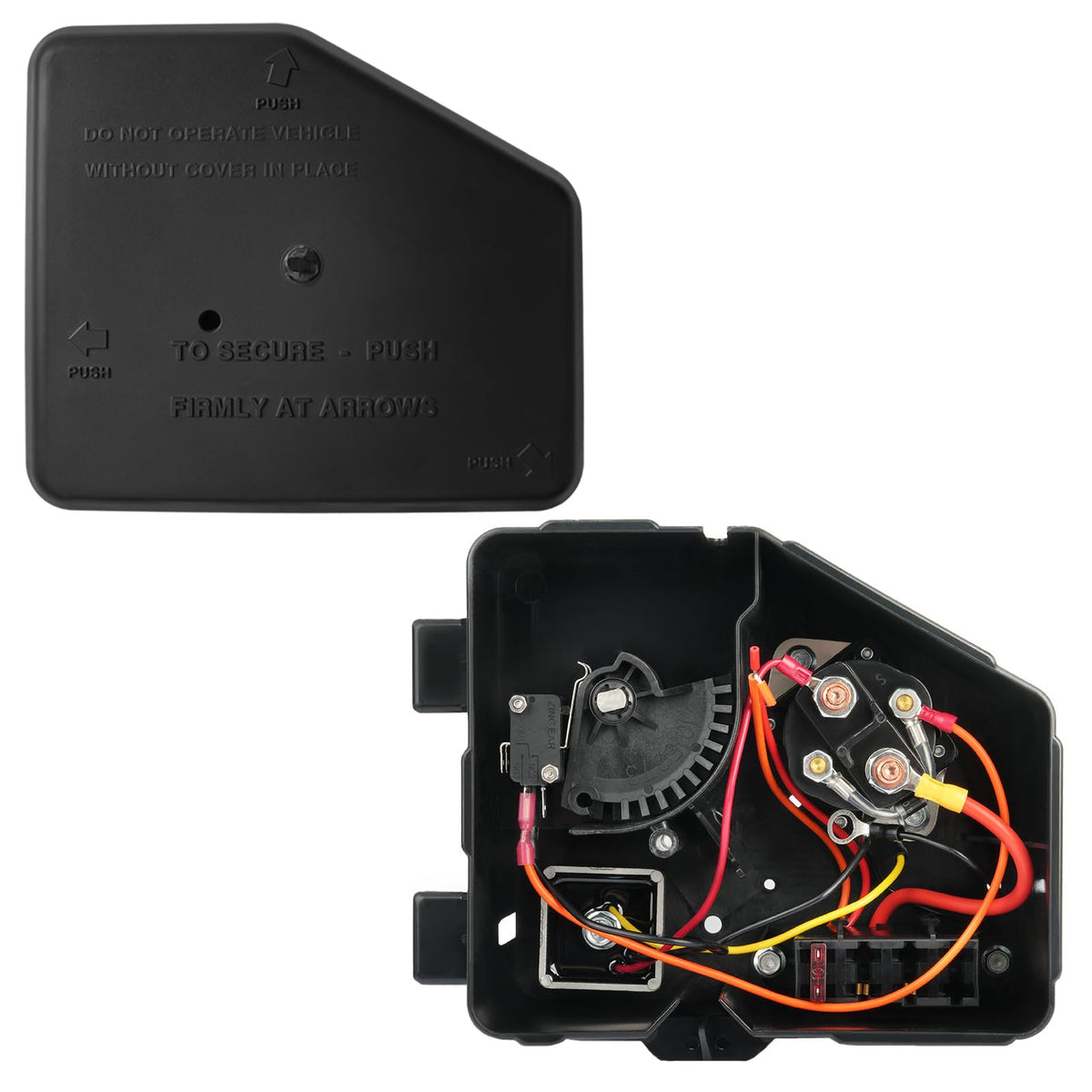

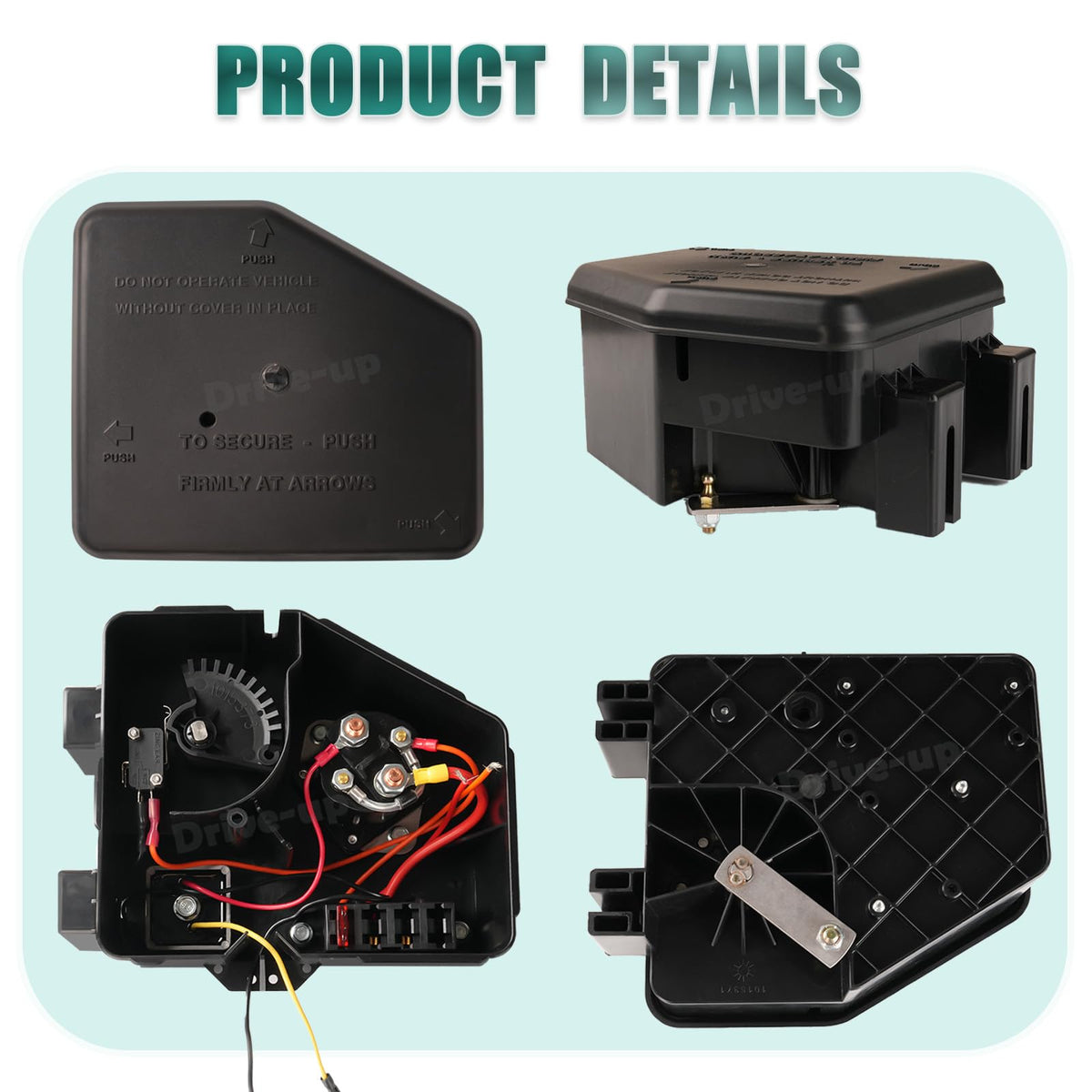

Drive Up Golf Cart Electrical Component Box Assembly for Club Car DS 1992-2015 – OEM 1013609 1015777 1014808

Complete OEM Replacement for Club Car DS Electrical Systems

The Drive Up Golf Cart Electrical Component Box Assembly is a comprehensive, OEM-part-compatible replacement designed for Club Car DS golf carts built between 1992 and 2015. This two-seat gas model fits select Club Car DS configurations and consolidates essential electrical components into one sturdy enclosure, helping you restore orderly wiring and reliable operation.

Crafted with authentic OEM parts, this kit brings together components that drivers rely on for steady power delivery and predictable operation. Rather than reusing an aging assembly, you receive a modern, ready-to-install replacement that mirrors the original specifications while simplifying maintenance.

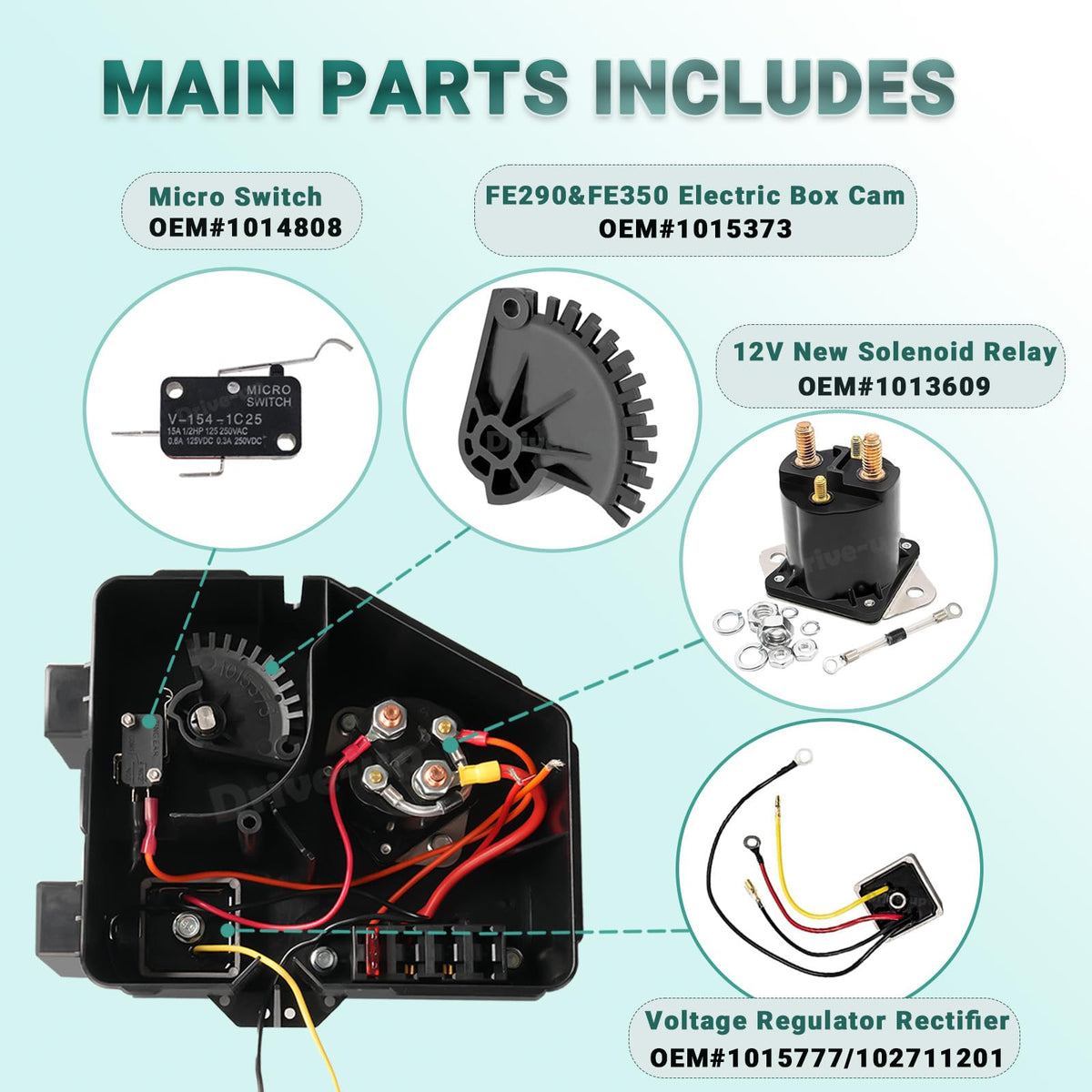

What’s Included

• 1× Micro switch (OEM 1014808)
• 1× 12V solenoid relay (OEM 1013609)
• 1× Voltage regulator rectifier (OEM 1015777/102711201)
• 1× FE290 & FE350 electric box cam (OEM 1015373)

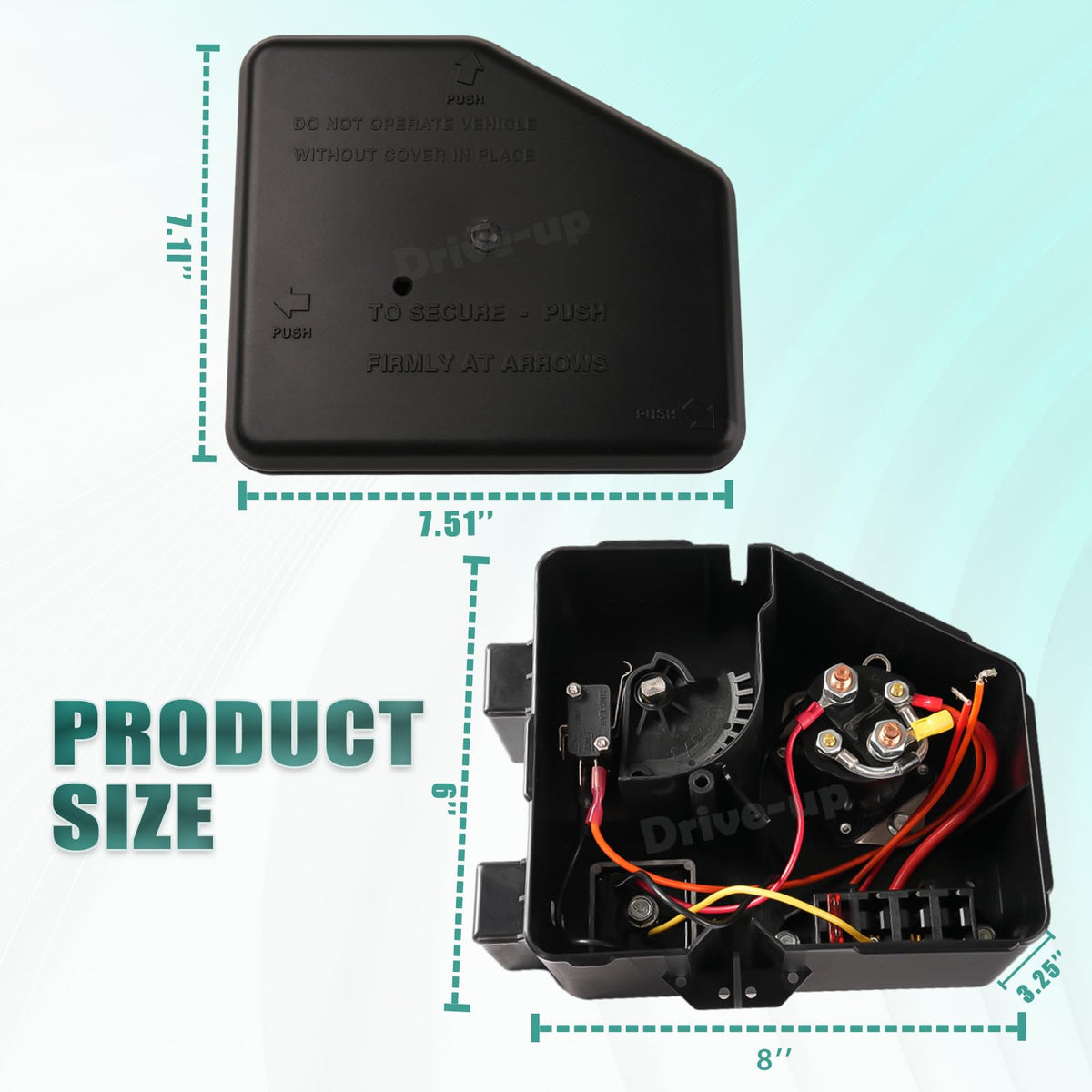

• 1× Electrical box cover (OEM 1015372)

Why this matters

• Designed to replace an aging or worn electrical box, potentially improving circuit reliability.
• OEM components help maintain authentic fit, wiring connections, and performance characteristics.
• The integrated cover protects sensitive electronics from dust and moisture exposure, supporting longer service life.

Compatibility and Installation

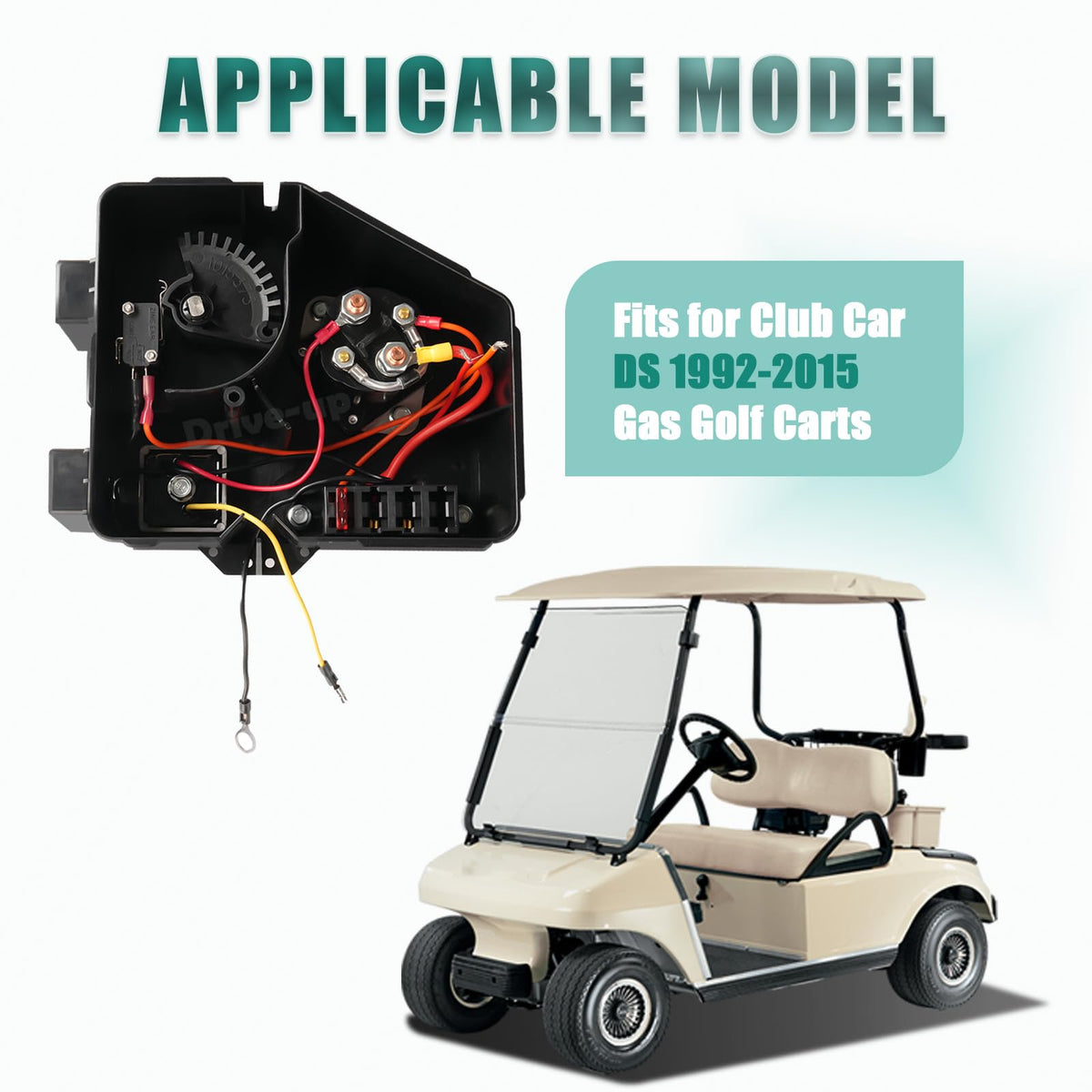

• Compatibility: Club Car DS models from 1992–2015, two-seat, gasoline-powered golf carts.
• Notes: Not intended for other carts or configurations.

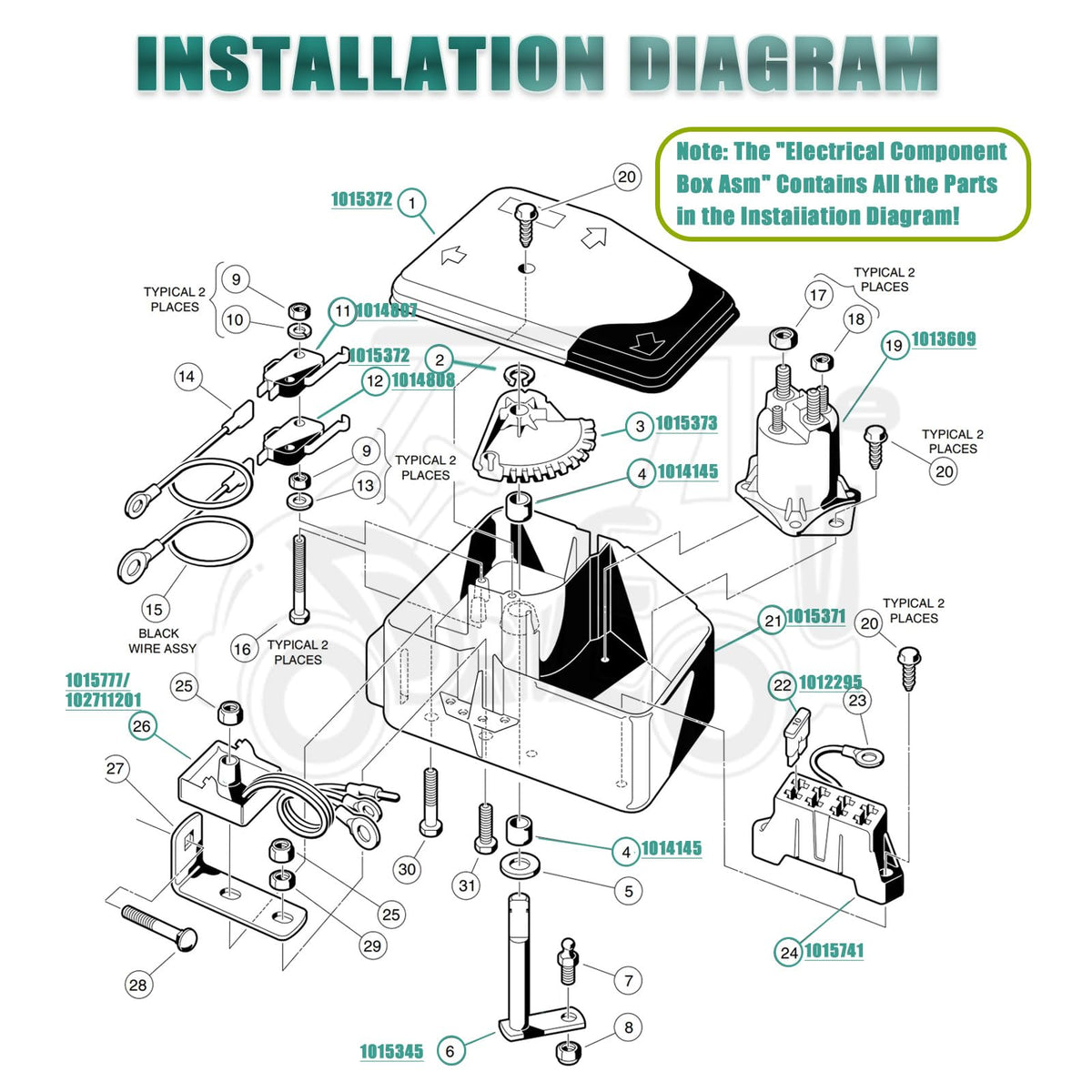

• Installation: Designed for straightforward replacement with common hand tools; typical swap workflow mirrors a standard component box change.

Real-world Use Scenarios

When a cart exhibits intermittent electrical behavior or a noisy box, replacing the assembly can help restore a clean electrical baseline. The included OEM parts align with the original design intent, supporting smoother diagnostics and consistent operation in everyday use, club runs, and maintenance routines.

While results vary by condition and usage, this kit provides a practical upgrade path for owners seeking a consolidated, OEM-backed solution without modifying the underlying chassis.
