Runleader RL-BI069B LED Battery Indicator for 12–48V Devices

Overview

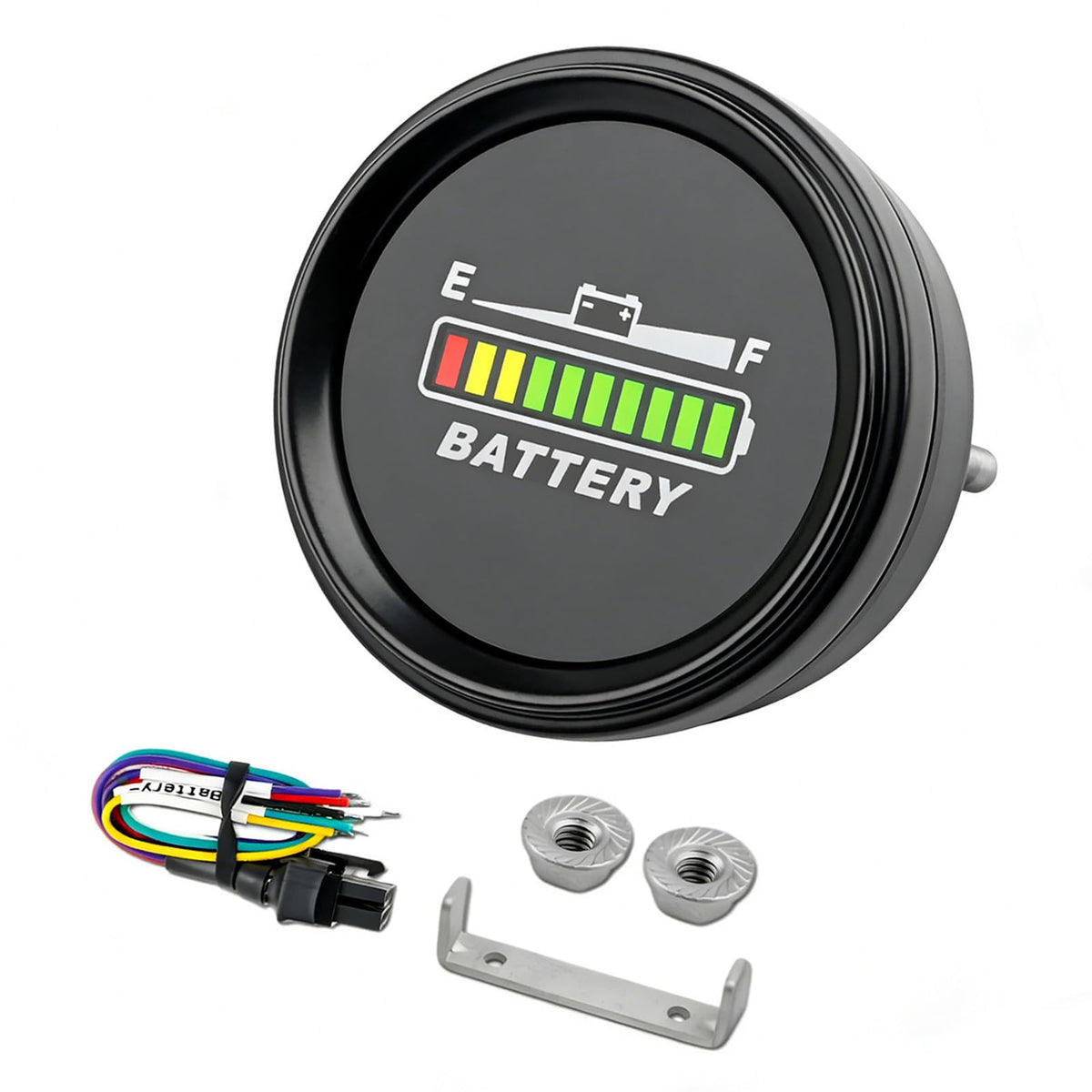

The Runleader RL-BI069B LED Battery Indicator is a compact, versatile monitor designed for battery-powered equipment across a range of applications—from golf carts and forklifts to lawn mowers, scrubbers, motorhomes, and off-grid solar generators. It translates battery state into a clear, color-coded LED display, helping you stay aware of energy levels without digging into dashboards or manuals. With broad compatibility and straightforward setup, this indicator aims to be a practical companion for daily operation and planning.

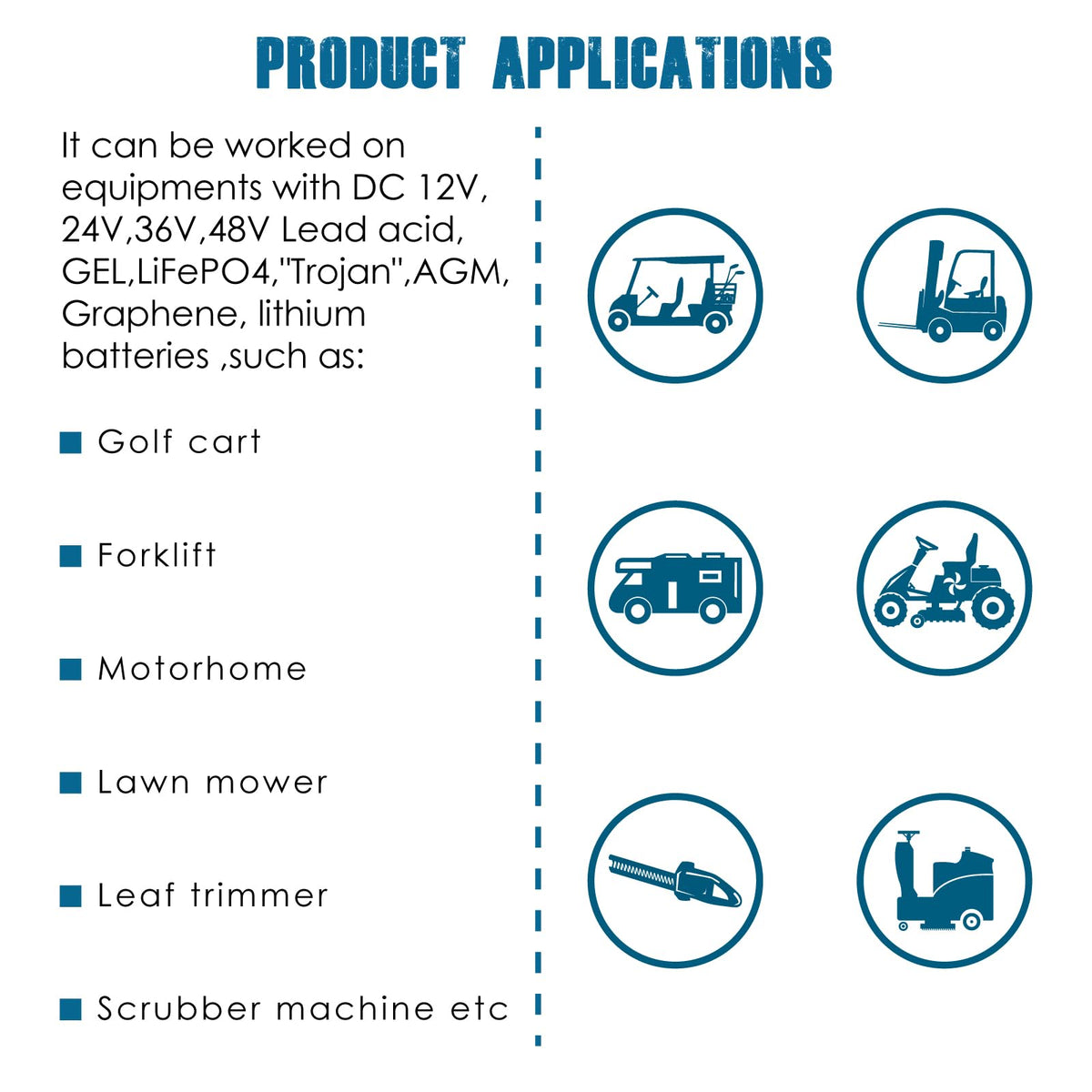

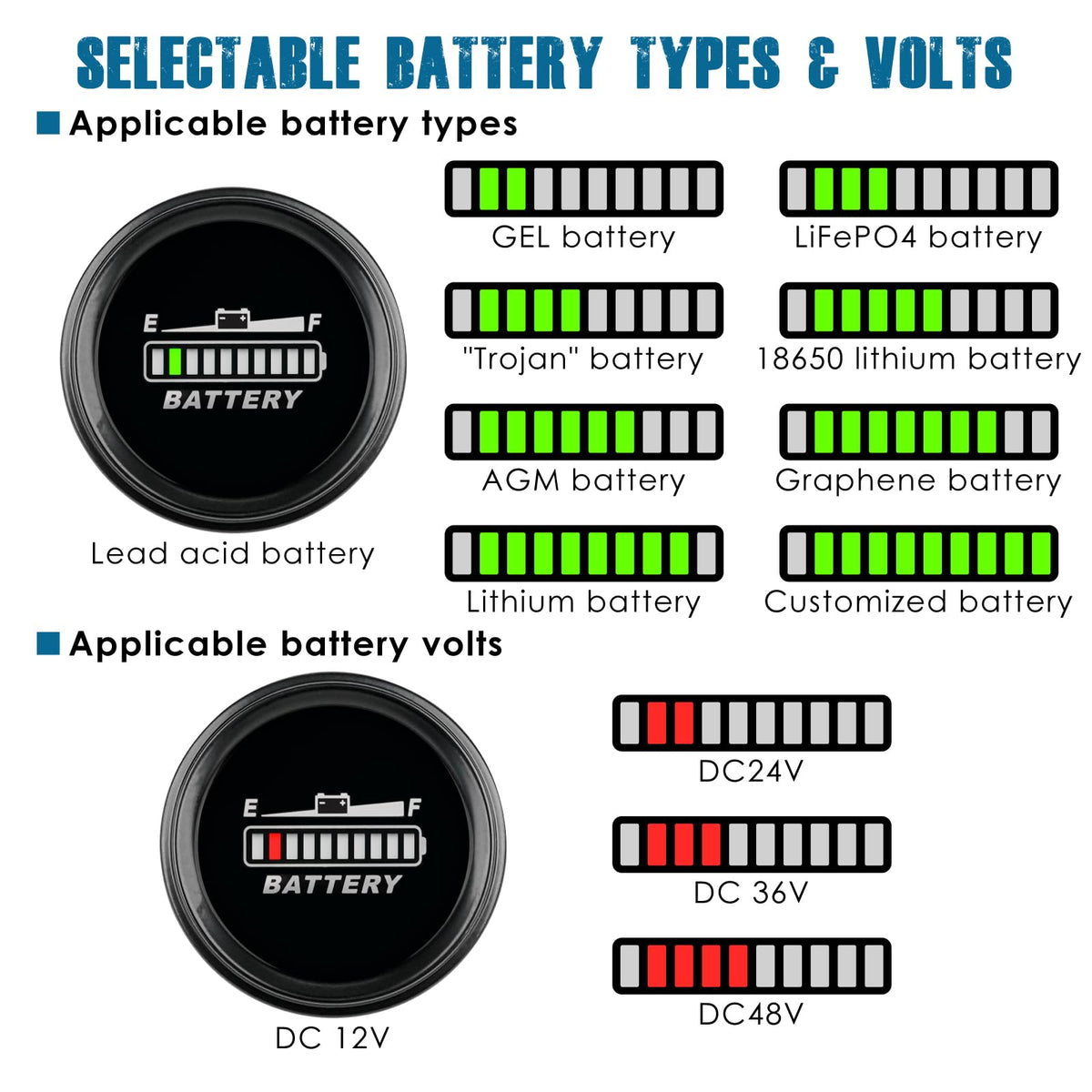

Designed to work with multiple battery chemistries and voltages, the RL-BI069B can reflect power status for DC 12V, 24V, 36V, and 48V systems. Whether you’re using lead acid, GEL, LiFePO4, AGM, Graphene, or 18650 configurations, you’ll typically see relevant information through the LED bars, which can be configured to emphasize urgency or steadiness as conditions change.

Key Benefits

• Clear power feedback: LED bars provide a quick read on remaining energy and status at a glance, reducing guesswork.

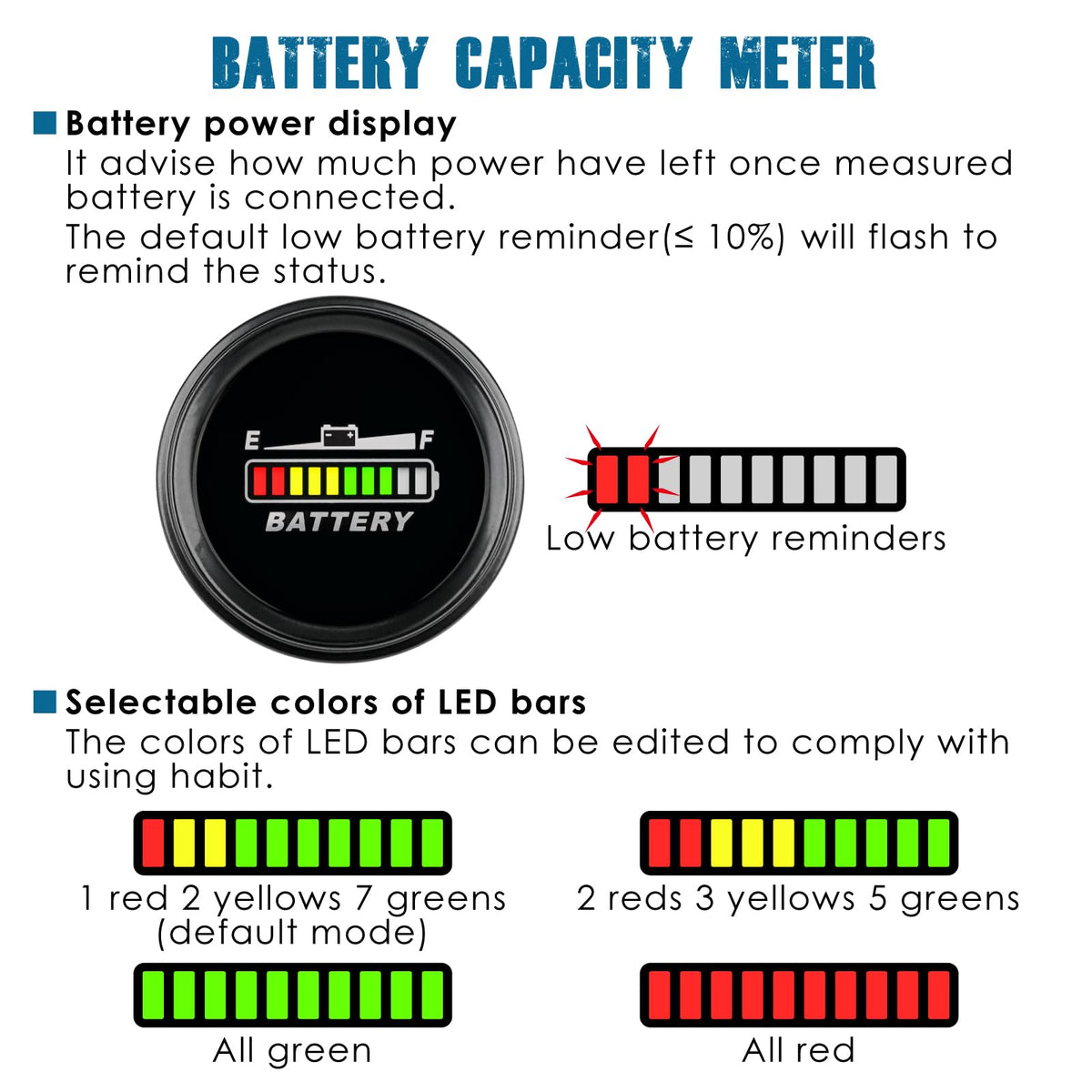

• Low-battery alert: when charge drops below 10%, the bars can flash to draw attention without requiring a screen.
• Flexible signaling: color configurations (for example, 1 red/2 yellow/7 green or 2 red/3 yellow/5 green) help tailor the indication to your workflow.
• Broad battery support: compatible with DC 12–48V systems and a variety of chemistries, including customized options.

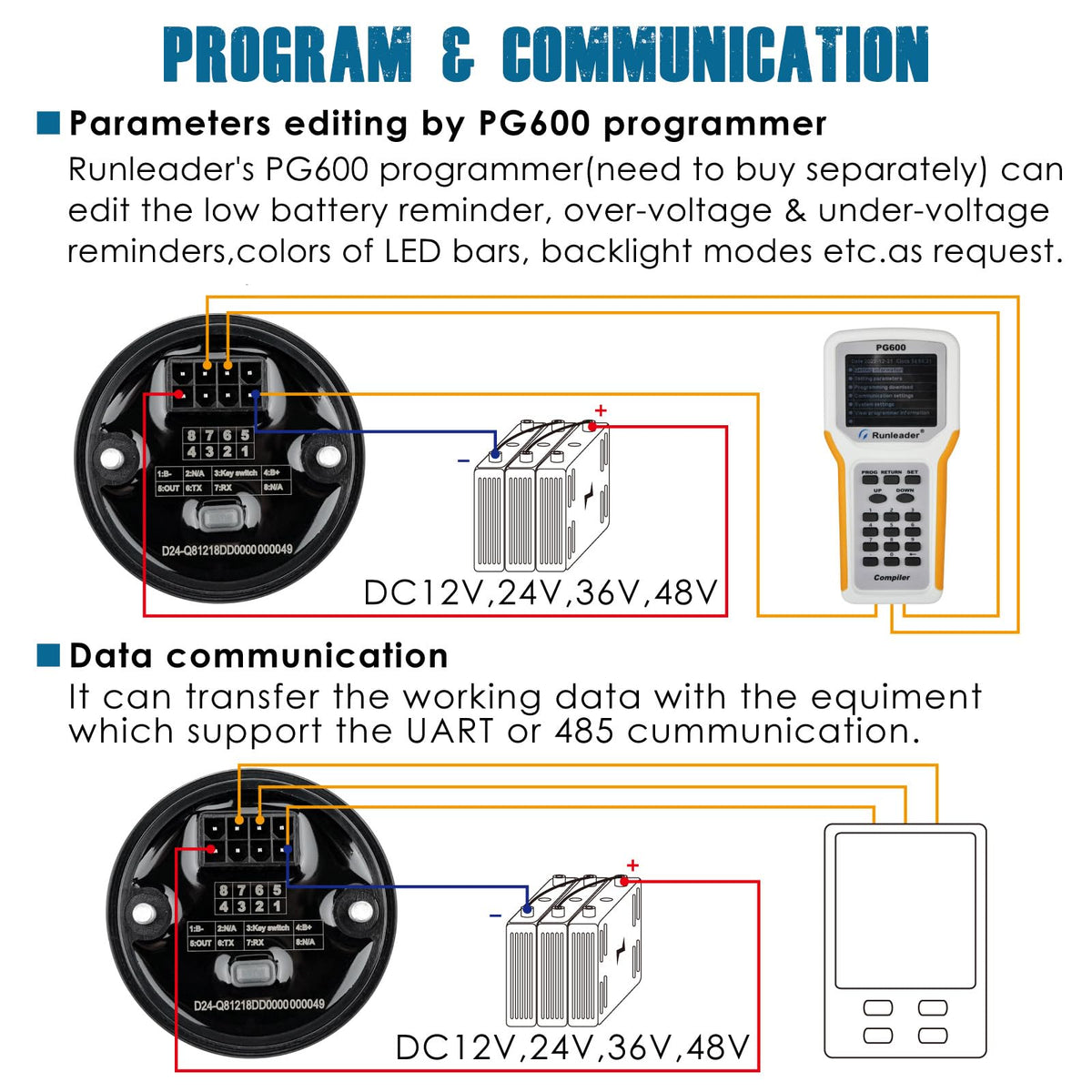

• Programmable options: using Runleader’s PG600 programmer (sold separately), you can fine-tune battery types, voltages, and LED colors to fit your setup.
• Simple integration: outputs support UART or RS-485 interfaces for data transfer and equipment integration.

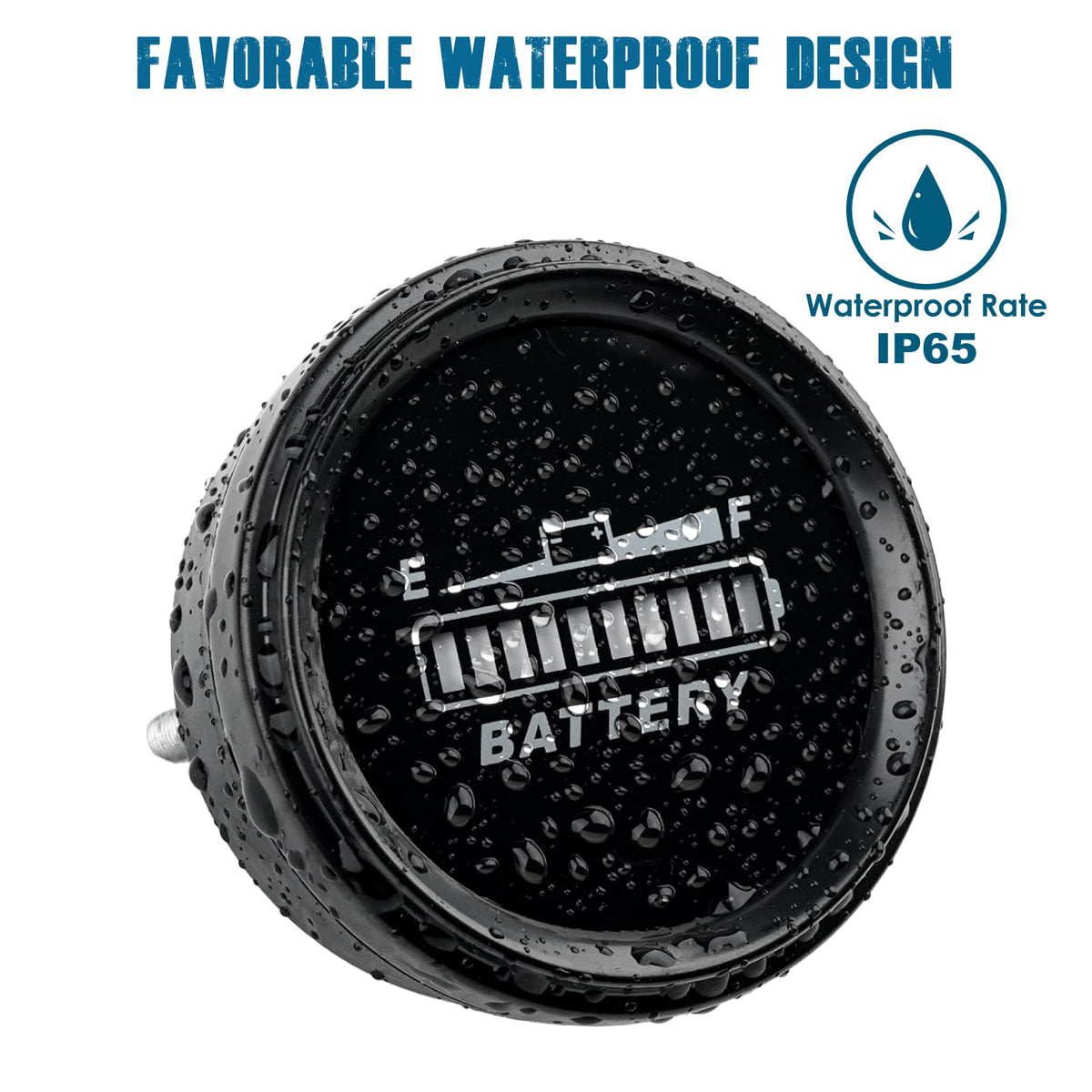

• Durable and reliable: firmware updates help keep features current, and IP65 rating provides water resistance for outdoor or workshop use.

Ideal Use Scenarios

Install the RL-BI069B on vehicles and machines where quick, non-distracting battery checks are valuable. For example, a fleet of golf carts can benefit from instant visibility of charge levels during peak hours; a solar generator setup can help gauge when to recharge; and maintenance teams can plan downtime around predictable energy availability.

Installation and Integration

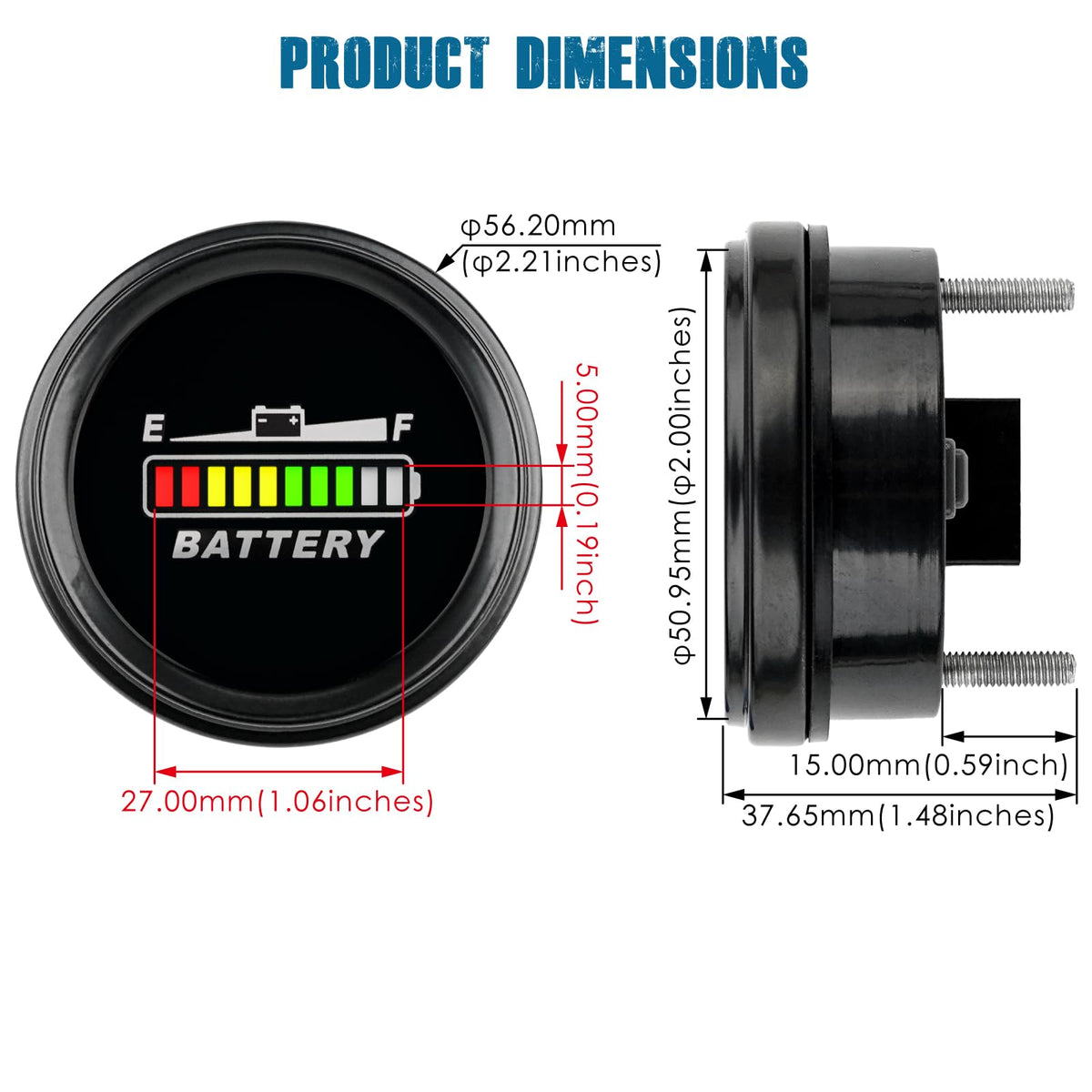

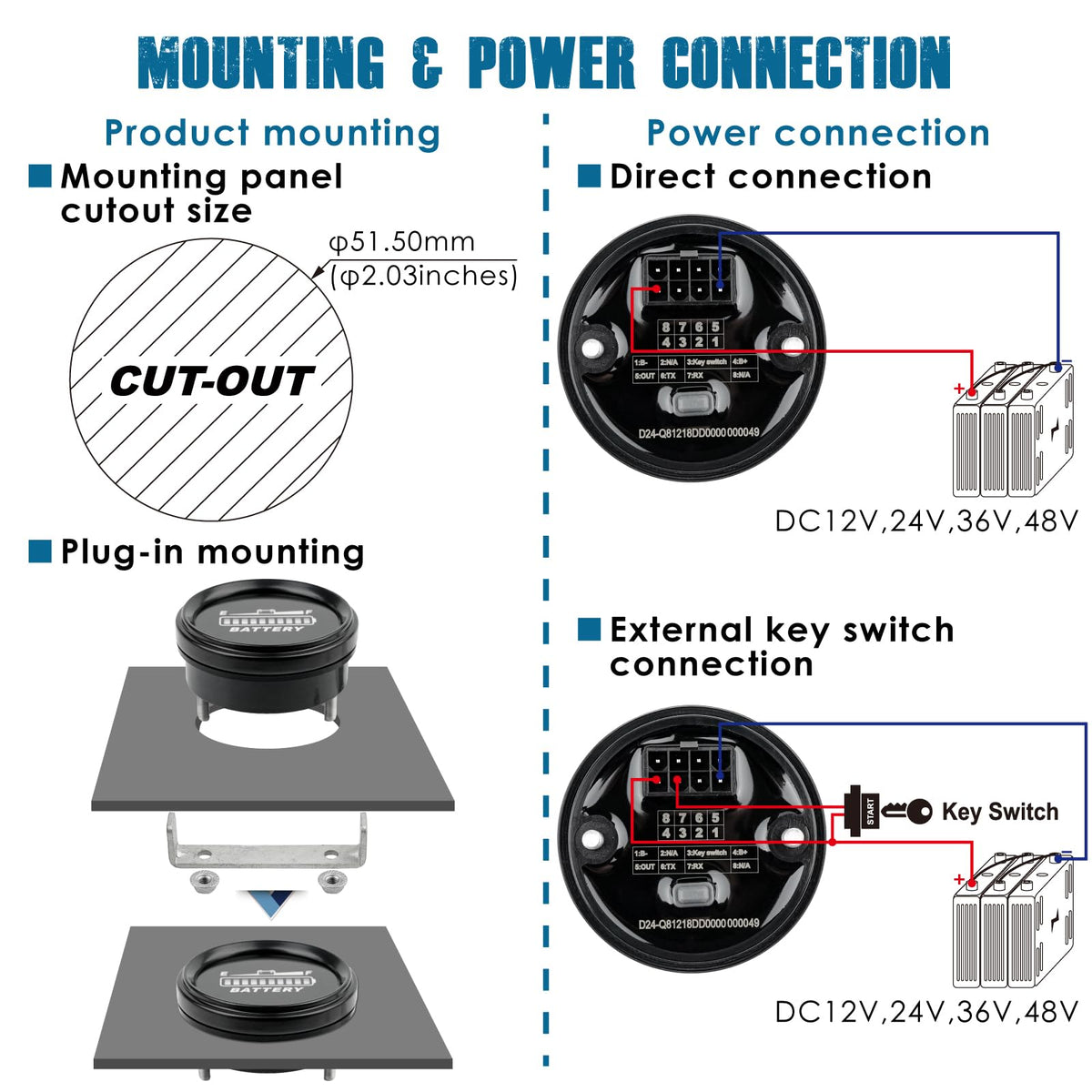

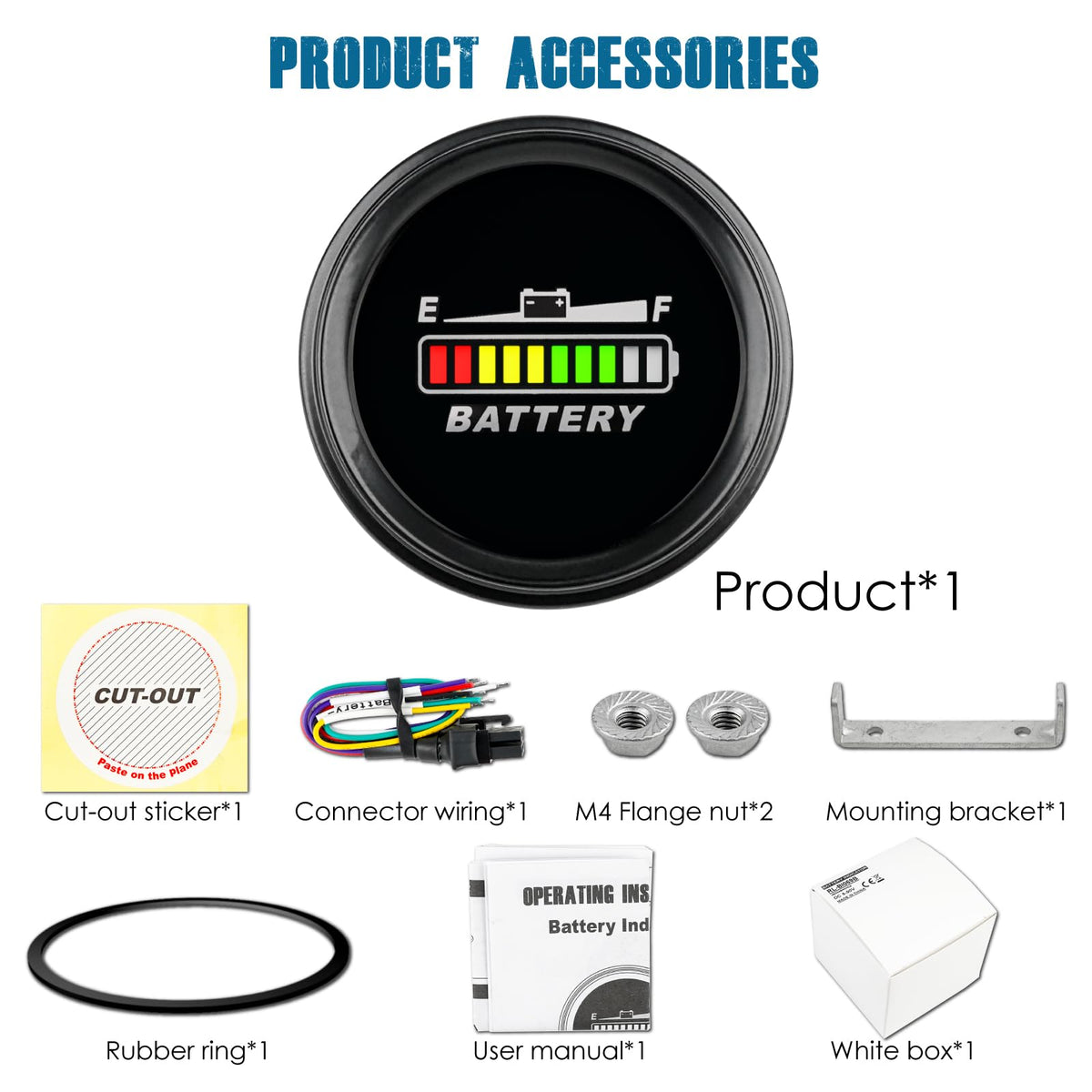

The unit is designed for a φ51.50 mm (2.03 inch) panel cutout. A simple drill-in, plug-in installation makes it feasible for dashboards, enclosures, or control panels. The 8-pin connector keeps wiring tidy while enabling reliable operation. Firmware updates and compatibility with UART/485 interfaces give you avenues to expand functionality as needs evolve.

With its mix of straightforward hardware, programmable features, and robust compatibility, the RL-BI069B offers a practical way to keep power status visible and manageable across a variety of battery-powered machines. It presents a thoughtful balance of readability, configurability, and resilience, aimed at improving day-to-day decision making without promising guaranteed outcomes.
